Radiochassis RC61

Radiochassis RC61; Braun; Frankfurt (ID = 28959) Radio

Radiochassis RC61; Braun; Frankfurt (ID = 166286) Radio

Radiochassis RC61; Braun; Frankfurt (ID = 166285) Radio

Radiochassis RC61; Braun; Frankfurt (ID = 207975) Radio
Radiochassis RC61; Braun; Frankfurt (ID = 852828) Radio Radiochassis RC61; Braun; Frankfurt (ID = 852829) Radio
Radiochassis RC61; Braun; Frankfurt (ID = 852831) Radio
Use red slider bar for more.
Radiochassis RC61; Braun; Frankfurt (ID = 852828) Radio

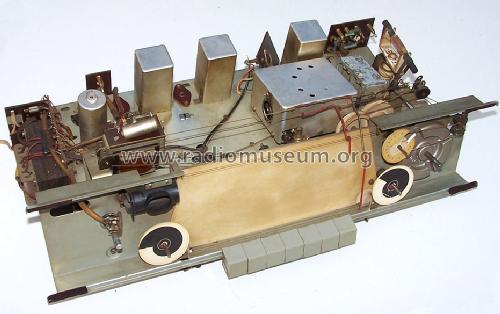

Braun; Frankfurt: Radiochassis RC61 [Radio] ID = 852828 859x632

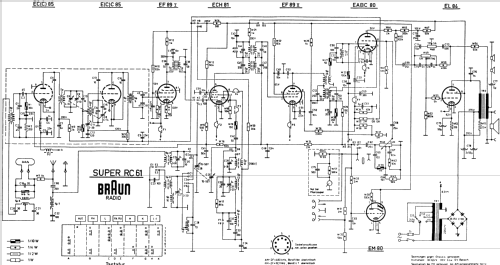

Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiochassis RC61, Braun; Frankfurt:
Quelle: ebay #220499815235. Mit freundlicher Genehmigung des Anbieters.

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 EF89 ECH81 EF89 EM80 EABC80 EL84
Semiconductors (the count is only for transistors) B250C100
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Radiochassis RC61 - Braun; Frankfurt
Material Metal case
Shape Chassis only or for «building in»
Notes Das Braun Radiochassis RC61 wurde in zahlreichen Modellen des Herstellers ab dem Jahrgang 1956 bis 1958 eingesetzt. Drehbare Ferritantenne.
External source of data Wiesmüller
Source of data Lange, Schaltungen der Funkindustrie
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Braun; Frankfurt
Here you find 1041 models, 905 with images and 642 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Braun; Frankfurt: Radiochassis RC61
Threads: 1 | Posts: 1
Hits: 1738     Replies: 0
braun: RC61; Radiochassis
Omer Suleimanagich
13.Jun.07
  1 Does anyone have alignment instructions for the North American version of this radio?
