Super 638W

Super 638W; Braun; Frankfurt (ID = 277473) Radio

Super 638W; Braun; Frankfurt (ID = 277475) Radio

Super 638W; Braun; Frankfurt (ID = 8156) Radio

Super 638W; Braun; Frankfurt (ID = 277474) Radio

Super 638W; Braun; Frankfurt (ID = 277471) Radio

Super 638W; Braun; Frankfurt (ID = 892874) Radio

Super 638W; Braun; Frankfurt (ID = 1855474) Radio

Super 638W; Braun; Frankfurt (ID = 1855475) Radio

Super 638W; Braun; Frankfurt (ID = 1855476) Radio

Super 638W; Braun; Frankfurt (ID = 1855477) Radio
Super 638W; Braun; Frankfurt (ID = 3857) Radio Super 638W; Braun; Frankfurt (ID = 707784) Radio
Super 638W; Braun; Frankfurt (ID = 3858) Radio Super 638W; Braun; Frankfurt (ID = 3859) Radio
Use red slider bar for more.
Super 638W; Braun; Frankfurt (ID = 3857) Radio
Braun; Frankfurt: Super 638W [Radio] ID = 3857 651x391
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 638W, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK2 AF3 AB2 AL4 AM2 AZ1
Main principle Superheterodyne (common); ZF/IF 488 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super 638W - Braun; Frankfurt
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 340 x 325 mm / 24 x 13.4 x 12.8 inch
Notes variable Bandbreite; Ch=239W
Price in first year of sale 268.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

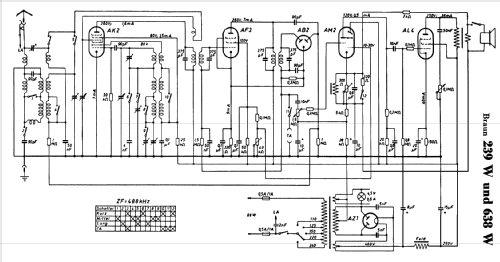

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
