• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1340

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EABC80 EC92 EL95 EL95

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

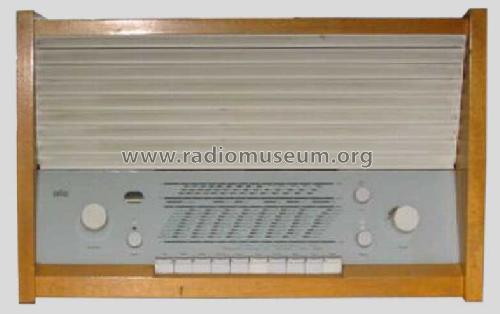

• Model: Super G11/62 Ch= RC62 - Braun; Frankfurt

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 540 x 355 x 335 mm / 21.3 x 14 x 13.2 inch

• Notes
• Der Braun Super G11/62 hat eine dreh- und abschaltbare Ferritantenne. Das Chassis heisst RC62. Zum Braun Super G11/62 gibt es noch einen passenden Plattenspieler Ausführung PC3.

• Net weight (2.2 lb = 1 kg)
• 13.3 kg / 29 lb 4.7 oz (29.295 lb)

• Price in first year of sale
• 395.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 1, Ernst Erb

• Picture reference
• Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.

• Other Models

• Here you find 1061 models, 931 with images and 651 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
