Tischsuper G11/7 Ch= RC7

Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 940266) Radio

Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 940267) Radio

Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 940268) Radio
Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 452026) Radio Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 452029) Radio
Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 452030) Radio Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 30768) Radio
Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 452027) Radio Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 452028) Radio
Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 1108145) Radio Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 1108146) Radio

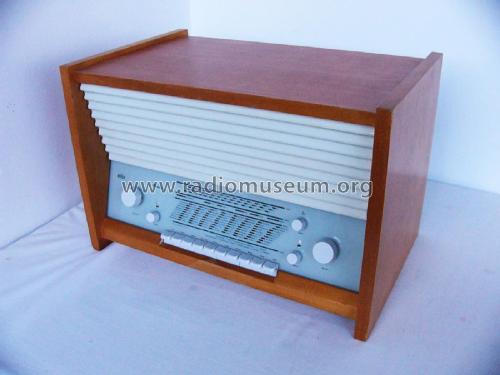

Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 1108147) Radio Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 2473837) Radio
Use red slider bar for more.
Tischsuper G11/7 Ch= RC7; Braun; Frankfurt (ID = 452026) Radio
Braun; Frankfurt: Tischsuper G11/7 Ch= RC7 [Radio] ID = 452026 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tischsuper G11/7 Ch= RC7, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF89 EM84 EABC80 EC92 EL95 EL95
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 7 W (unknown quality)
from Radiomuseum.org Model: Tischsuper G11/7 Ch= RC7 - Braun; Frankfurt
Material Wooden case
Dimensions (WHD) 540 x 355 x 335 mm / 21.3 x 14 x 13.2 inch
Notes   Braun G11/7 enthält das Chassis RC7. Drehbare und abschaltbare Ferritantenne, automatische Rauschunterdrückung auf UKW, abschaltbar. Gegentakt-Endstufe (mono). Bezeichnung G11/7 laut Braun-Servicedokumentation.
Net weight (2.2 lb = 1 kg) 13.3 kg / 29 lb 4.7 oz (29.295 lb)
Price in first year of sale 395.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1958/59 / Radiokatalog Band 1, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
