TS1 Ch= RC60, RC55 UK; Braun; Frankfurt (ID = 854848) Radio

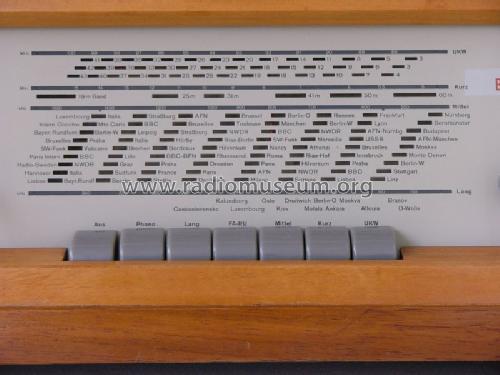

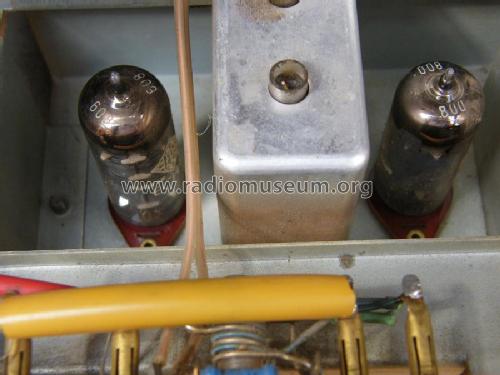

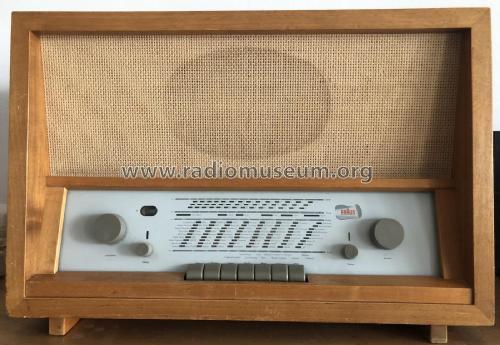

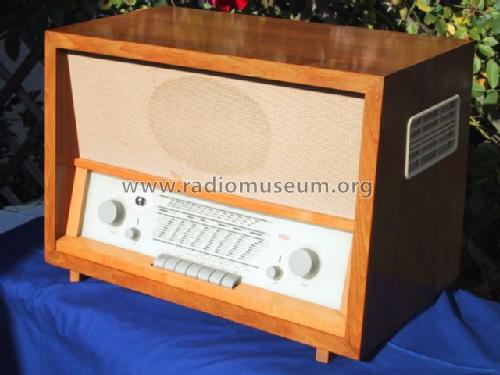

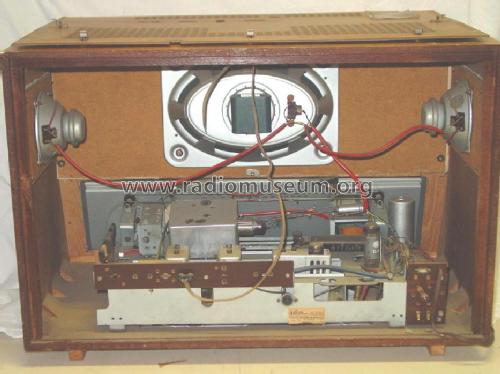

Braun; Frankfurt: TS1 Ch= RC60, RC55 UK [Radio] ID = 854848 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model TS1 Ch= RC60, RC55 UK, Braun; Frankfurt

Country:  Germany
Manufacturer / Brand:  Braun; Frankfurt
Year: 1955–1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84
Semiconductors (the count is only for transistors) B250C100
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: TS1 Ch= RC60, RC55 UK - Braun; Frankfurt
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 410 x 335 mm / 23.6 x 16.1 x 13.2 inch
Notes

Chassis RC55UK.

Kataloge, Firmenprospekte und Schaltpläne bezeichnen das Chassis mit RC60 (Rundfunk-Chassis 60), tatsächlich produzierte Geräte zeigen die Typbezeichnungen RC55 AU, RC55 AUK oder RC56 AUK. Siehe hier.

Net weight (2.2 lb = 1 kg) 13.4 kg / 29 lb 8.2 oz (29.515 lb)
Price in first year of sale 300.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 1, Ernst Erb

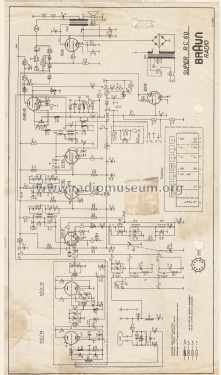

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 2
Mentioned in HdB d.Rdf-& Ferns-GrH 1956/57
Literature/Schematics (1) -- Original-techn. papers.
