• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1958 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 347812

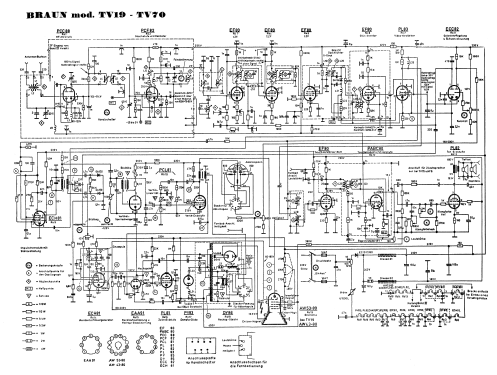

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• PCC88 PCF82 EF80 EF80 EF80 EF80 PL83 ECC82 EF80 PABC80 PL82 ECH81 PCL81 ECH81 EAA91 PL81 PY83 DY86 AW43-80

• Number of Transistors

• Semiconductors
• OA150 OA150 E220C350

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: TV19 - Braun; Frankfurt

• Notes

• Black/white TV set with only VHF.

• Mentioned in
• -- Schematic (Schemario TV 1958 sesta serie editrice "Il Rostro")

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
