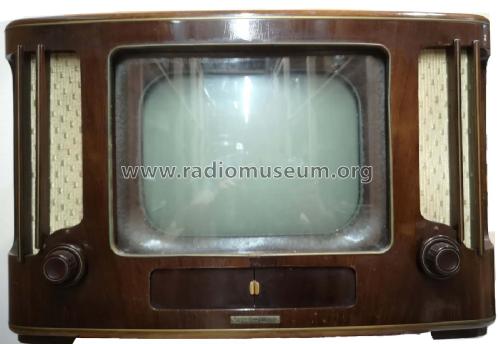

TV35T Ch= Telefunken FE8aT

• Country
• Germany

• Manufacturer / Brand
• Braun; Frankfurt

• Year
• 1952/1953

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 314563

• Picture

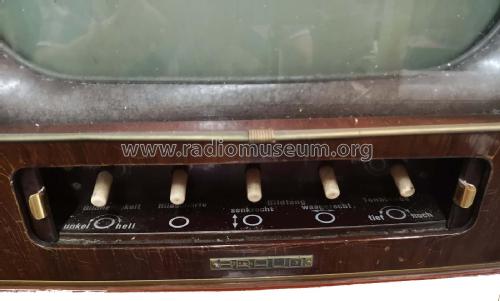

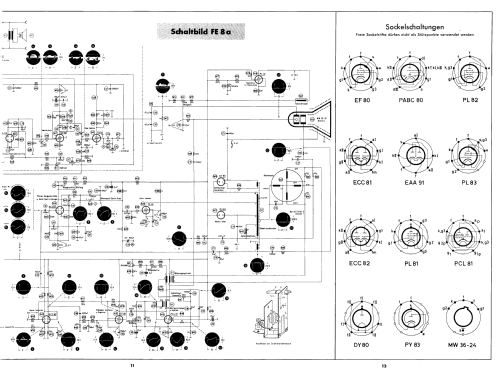

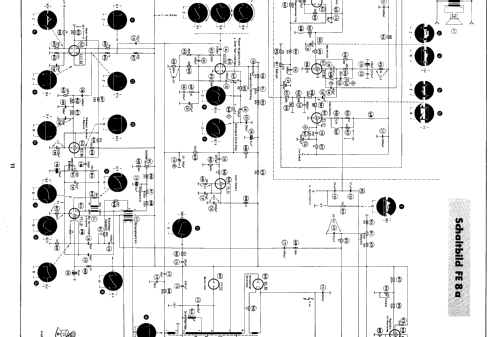

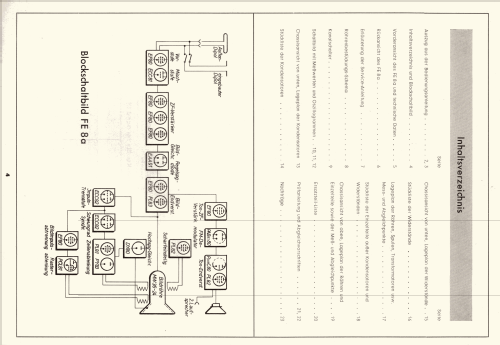

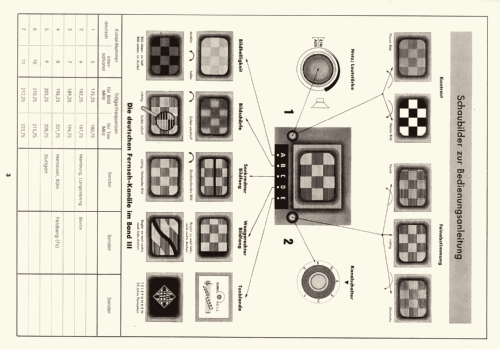

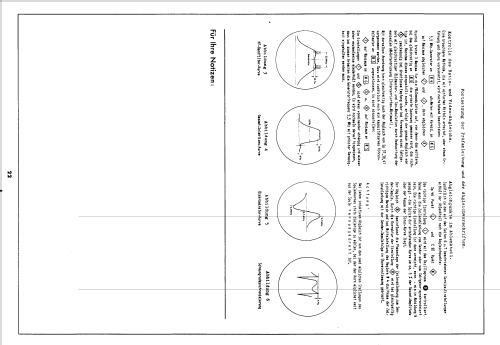

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes

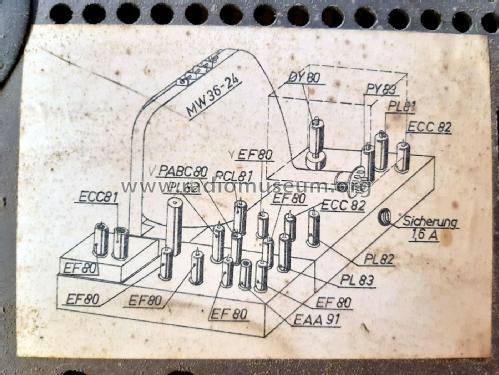

• EF80 ECC81 EF80 EF80 EF80 EAA91 EF80 PL83 EF80 PABC80 PL82 PCL81 EF80 ECC82 PL82 ECC82 PL81 PY83 DY80 MW36-24

• Main principle
• Superhet with RF-stage; ZF/IF 25275/5500 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: TV35T Ch= Telefunken FE8aT - Braun; Frankfurt

• Shape

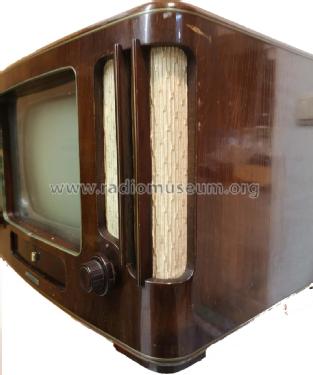

• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 645 x 420 x 500 mm / 25.4 x 16.5 x 19.7 inch

• Notes

• Empfangsbereich: 7 Kanäle im Band III (174 ... 223 MHz).
  Intercarrier-Tonteil.

  Der Braun Fernsehempfänger TV35T verwendet das Chassis des Telefunken FE8aT

  Sicherheitsglas vor Bildröhre ist als Kontrastfilterscheibe ausgeführt.

• Net weight (2.2 lb = 1 kg)
• 34.8 kg / 76 lb 10.4 oz (76.652 lb)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.

• Other Models

• Here you find 1061 models, 931 with images and 652 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Braun; Frankfurt
