Derby 101

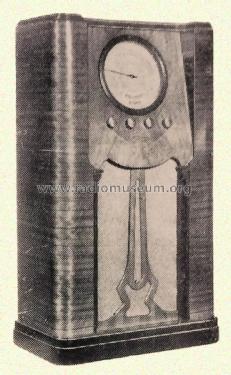

Derby 101; Breville; Sydney (ID = 676316) Radio
Use red slider bar for more.
Derby 101; Breville; Sydney (ID = 676316) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Breville; Sydney
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6D6 6A7 6D6 6B7S_Aus 43 25Z5
Main principle Superhet with RF-stage; ZF/IF 446 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220/240/260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Derby 101 - Breville; Sydney
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Price in first year of sale 35.70 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. I
Mentioned in (The) Radio Retailer of Australia (Vol. 12, No. 16 (237th Issue), 14/5/1937.)
Literature/Schematics (1) Australian Official Radio Service Manual AORSM (Volume 1, 1938, Page 76.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
