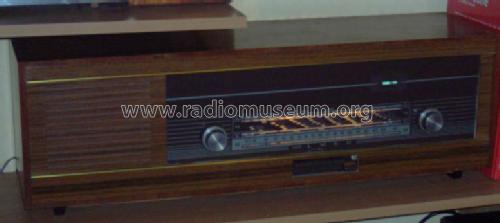

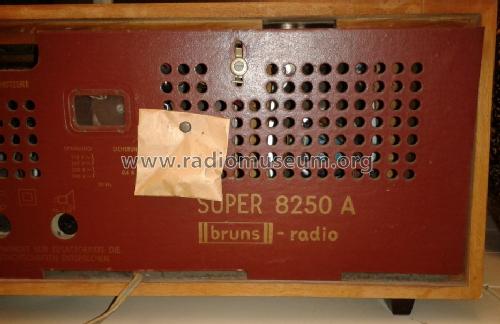

Super  8250A

Super  8250A; Bruns; Hamburg (ID = 2168222) Radio Super  8250A; Bruns; Hamburg (ID = 2168223) Radio
Super  8250A; Bruns; Hamburg (ID = 1468253) Radio Super  8250A; Bruns; Hamburg (ID = 81199) Radio
Super  8250A; Bruns; Hamburg (ID = 81201) Radio Super  8250A; Bruns; Hamburg (ID = 81200) Radio
Super  8250A; Bruns; Hamburg (ID = 81234) Radio Super  8250A; Bruns; Hamburg (ID = 1439724) Radio
Super  8250A; Bruns; Hamburg (ID = 1439725) Radio Super  8250A; Bruns; Hamburg (ID = 1439726) Radio
Use red slider bar for more.
Super  8250A; Bruns; Hamburg (ID = 2168222) Radio
Bruns; Hamburg: Super  8250A [Radio] ID = 2168222 1400x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super  8250A, Bruns; Hamburg

Country:  Germany
Manufacturer / Brand:  Bruns; Hamburg
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EAF801 EABC80 EM84 EL84 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Super  8250A - Bruns; Hamburg
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 704 x 226 x 202 mm / 27.7 x 8.9 x 8 inch
Notes   Hersteller ist VEB Funk- und Feinmechanik Neustadt/Glewe. Entspricht dem Modell Aviso 8211 mit erweitertem UKW-Bereich (Export).
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Funkverlag Hein, Service DVD

Model page created by Frank Sura. See "Data change" for further contributors.
