RG46
Bush Radio; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Bush Radio; London
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103231
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470/19500 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details

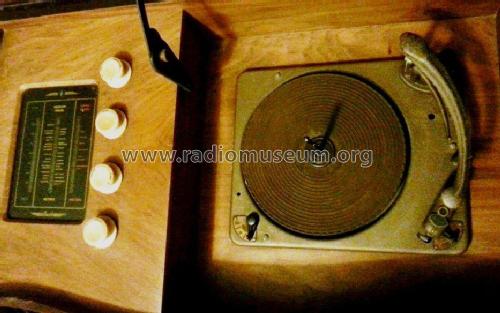

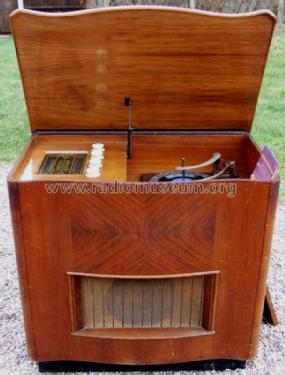

- Changer (Record changer)
- Power type and voltage

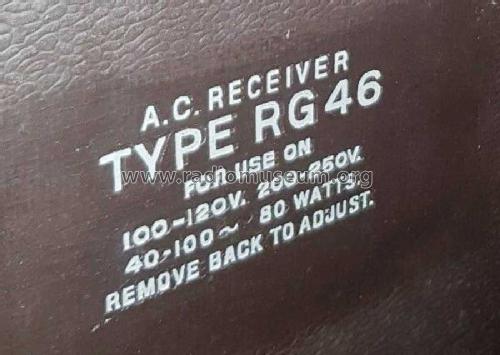

- Alternating Current supply (AC) / 110; 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material

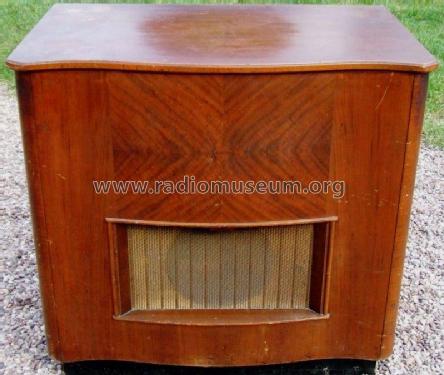

- Wooden case
- from Radiomuseum.org
- Model: RG46 - Bush Radio; London
- Shape
- Tablemodel, with any shape - general.
- Notes
- The chassis is similar to that in the Bush VHF41 table radio.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1203)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
