401 Chinese Chippendale 8076 tuner, 8078 PSU

401 Chinese Chippendale 8076 tuner, 8078 PSU; Capehart Corp.; Fort (ID = 465030) Radio

401 Chinese Chippendale 8076 tuner, 8078 PSU; Capehart Corp.; Fort (ID = 465031) Radio

401 Chinese Chippendale 8076 tuner, 8078 PSU; Capehart Corp.; Fort (ID = 465032) Radio

401 Chinese Chippendale 8076 tuner, 8078 PSU; Capehart Corp.; Fort (ID = 465033) Radio
Use red slider bar for more.
401 Chinese Chippendale 8076 tuner, 8078 PSU; Capehart Corp.; Fort (ID = 465030) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Capehart Corp.; Fort Wayne, IN - see also Farnsworth
Year: 1931/1932 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 51 51 27 51 51 27 27 45 45 45 45 or 47 80 80
Main principle Superhet with RF-stage
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record-Changer, both sides!
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 401 Chinese Chippendale 8076 tuner, 8078 PSU - Capehart Corp.; Fort Wayne, IN
Material Wooden case
Shape Console with any shape - in general
Notes

401 Chinese Chippendale

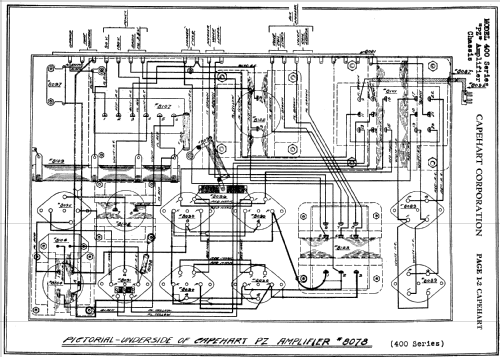

The first model Series 400 uses the two chassis: 8076 tuner and 8078 PSU (PSU = power supply). The 4 AF output tubes are in parallel push-pull.
In the season 1931/32 Capehart has made a model 400 style Chippendale for $ 1095, a model 401 style Chinese Chippendale for $ 995 and a model 402 style Adam for $ 895. These were the only models for ths first season, followed by 400A, 401A, 402A and (late) a new style 404 Chateau. Chinese Chippendale was only made in the first season.

See here the "Common information for the Capehart model pages for the 1930s and 1940s".
McMahon shows two entries for the same price: either 4 x 45 or 4 x 47 output tubes.

Price in first year of sale 995.00 $
External source of data Ernst Erb
Mentioned in The Incomparable Capehart
Literature/Schematics (1) Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931) (p 3)
Literature/Schematics (2) Radio Collector`s Guide 1921-1932 (page 201)
