404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E

Capehart Corp.; Fort Wayne, IN - see also Farnsworth

Datos

Foro

Imágenes

Colecciones

País
Estados Unidos

Fabricante / Marca
Capehart Corp.; Fort Wayne, IN - see also Farnsworth

Año
1936/1937

perfect model

Categoría
Radio - o Sintonizador pasado WW2

Radiomuseum.org ID
223500

Imágenes
Esquemas

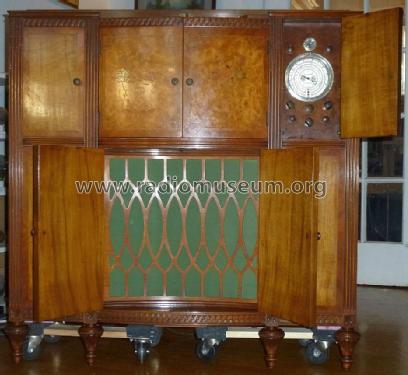

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1405231) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1302479) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1302482) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1302480) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1302483) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1302487) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1302481) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1405232) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1302484) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1314994) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1302485) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1302488) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1303843) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1303845) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1303846) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

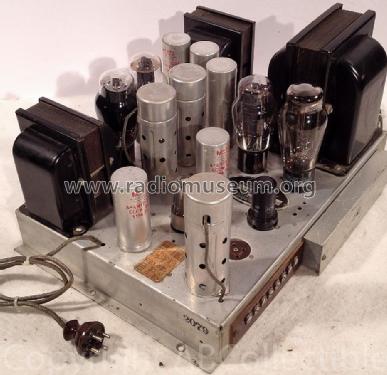

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306469) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306471) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306472) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306473) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306475) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306476) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306478) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306480) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306483) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306485) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306486) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306487) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306488) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306509) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)

404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E; Capehart Corp.; Fort (ID = 1306512) Radio — Capehart Corp.; Fort 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E (2)
eBay sale, later ABCollectibles.com.

Especificaciones técnicas

Numero de valvulas
24

Válvulas
6K7 6K7 6C5 6L7 6G5 6K7 6K7 6H6 6H6 6C5 6C6 6C5 6C5 6F5 6F5 6L6 6L6 5Z3 5Z3 6C5 6C5 6L6 6L6 5Z3

Principio principal
Superheterodino con paso previo de RF; ZF/IF 465 kHz; 2 Etapas de AF

Número de circuitos sintonía
10 Circuíto(s) AM

Gama de ondas
OM, OL y más de dos OC

Especialidades
Record-Changer, both sides!

Tensión de funcionamiento
Red: Corriente alterna (CA, Inglés = AC) / 115 Volt

Altavoz
2 Altavoces

Material
Madera

de Radiomuseum.org
Modelo: 404-E Chateau or 404-ER Ch= W-890 + amp W-891, W-892; 16-E - Capehart Corp.; Fort Wayne, IN

Forma
Consola en general

Ancho, altura, profundidad
42 x 43 x 22 inch / 1067 x 1092 x 559 mm

Anotaciones
404E Chateau
Cabinet 404 Chateau is of Royal Hawaiian Koa wood with tinted floral inlays.
The cabinet 404 Chateau has been made from late 1933 as 404A, 404B (1933/34), 404C (1934/35), 404D (1935/36) and 404E for season 1936/37. Same cabinet, other chassis per season. See also Chateau 414-E without tuner.
Chassis Series 400-E for LW, broadcast and two SW bands:
4-gang tuning condenser for two RF stages, 6 IF filters. See Rider's volume 10-7+8 for the 10-tube tuner chassis W-890 from Sept 16, 1936 for Capehart 404E Chateau, 405E Chippendale, 406E Adam, at least Adam has 3 speakers, 407E Neo-Classic/Modern, 500E Empire, the 1600E Plain Cabinet Concealed, 60E Modern and 61E 18th Century:
6K7 1st RF, 6K7 2nd RF, 6C5 osc, 6L7 mixer, 2 x 6K7 IF, 2 x 6H6 2nd det, AVC, 6C5 AVC amp, 6G5 mag. eye. Aladdin remote is possible. Turning changer is 16-E for 78 rpm.
Two AF amplifiers:
W-891 for 9 tubes: 6C6, 2 x 6C5, 2 x 6F5, 2 x 6L6, 2 x 5Z3.
W-892 for 5 tubes: 2 x 6C5, 2 x 6L6 push-pull, 5Z3 rectifier.
Radio part No. 1957 is for 400 and 500 series E, 1960 is for 304 and 305 cabinets and No. 1961 for 50, 51, 60 and 61 cabinets.

The Capehart 400 series were introduced for season 1931/32 without suffix, followed by A 1932/33, B 1933/34 etc. through to season 1948-50. See here the "Common information for the Capehart model pages for the 1930s and 1940s" and the timelines there for more information.

Precio durante el primer año
1,125.00 $

Mencionado en
The Incomparable Capehart

Documentación / Esquemas (1)
Rider's Perpetual, Volume 10 = 1939 and before (Capehart pages 10-7, 10-8 and 10-11)
