Cambridge RC-9

Cambridge RC-9; Capehart Corp.; Fort (ID = 2013016) R-Player

Cambridge RC-9; Capehart Corp.; Fort (ID = 2013017) R-Player

Cambridge RC-9; Capehart Corp.; Fort (ID = 2013018) R-Player

Cambridge RC-9; Capehart Corp.; Fort (ID = 2013019) R-Player

Cambridge RC-9; Capehart Corp.; Fort (ID = 2013021) R-Player
Use red slider bar for more.
Cambridge RC-9; Capehart Corp.; Fort (ID = 2013016) R-Player
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Capehart Corp.; Fort Wayne, IN - see also Farnsworth
Year: 1955 ?? Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: ECC83 EL84 EL84 EZ80
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 60 cycles, 117; 200-250 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Cambridge RC-9 - Capehart Corp.; Fort Wayne, IN
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

With Garrard 4-speed record changer. RC120/4D or RC121/4D

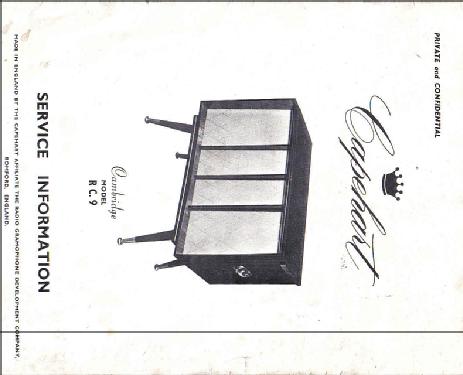

Made in England by the Capehart affiliate The Radio Gramophone Development Company [RGD] Romford, England.

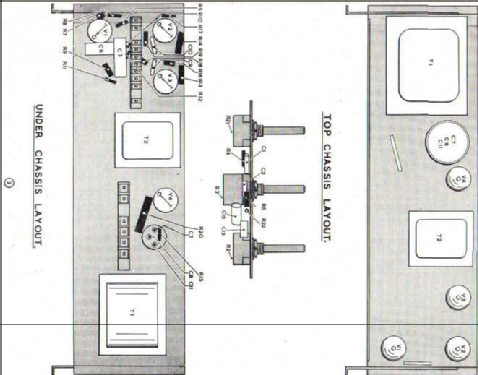

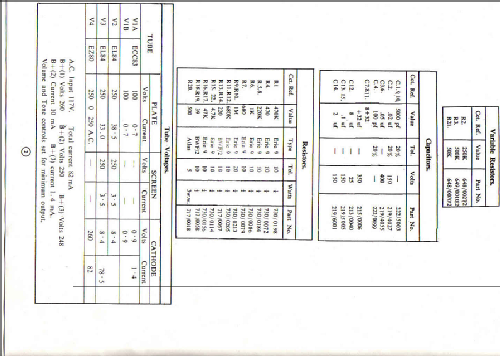

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Seth Powers. See "Data change" for further contributors.
