400F DeLuxe series & 1600F De Luxe plain cabinet general, samples & unknown; Capehart Corp.; Fort (ID = 1343305) Radio
Capehart Corp.; Fort: 400F DeLuxe series & 1600F De Luxe plain cabinet general, samples & unknown [Radio] ID = 1343305 933x1190
Select picture or schematic to display from thumbnails on the right and click for download.
For model 400F DeLuxe series & 1600F De Luxe plain cabinet general, samples & unknown, Capehart Corp.; Fort Wayne, IN - see also Farnsworth:

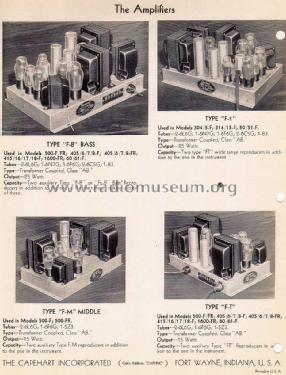

By courtesy of member George Epple, USA, from a Capehart sales brochure for the F-series.

Country:  United States of America (USA)
Manufacturer / Brand:  Capehart Corp.; Fort Wayne, IN - see also Farnsworth
Year: 1937/1938 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 23: 6K7 6K7 6L7 6K7 6G5 6K7 6H6 6K7 6H6 6J7 6C5 5Z4 6N7G 6C5G 6F6G 6L6G 6L6G 83 6F6G 6L6G 6L6G 5Z3
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Record-Changer, both sides!
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 400F DeLuxe series & 1600F De Luxe plain cabinet general, samples & unknown - Capehart Corp.; Fort Wayne, IN
Material Wooden case
Shape Console with any shape - in general
Notes

400F DeLuxe series & 1600F De Luxe plain cabinet
general, samples & unknown

This model page is for collecting uncertain or unknown pictures or facts for a given season. Can also contain the different pictures for the different models from sets of this season.
For season F, 1937/38 there were at least the following general models offered:
500F, 405F, 406F, 407F, 408F, 304F, 305F, 204F and 1600F plain cabinet for a conceiled installation.
Known details for 1600F are found here. This model type started in season "B" and ended in season "G".  For season E and F there was offered as model 160 also the "turn-over record changer" only.
Chassis:

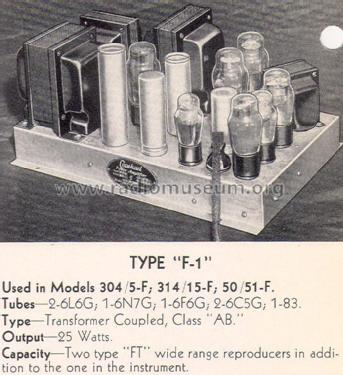

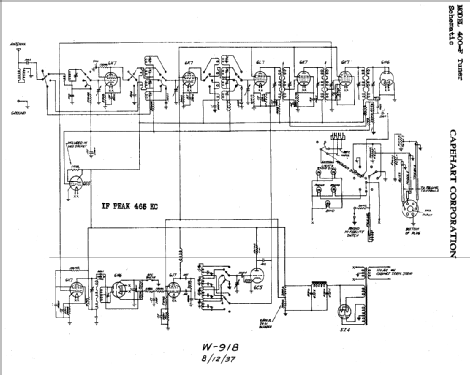

Tuner with the following 12 tubes: 6K7, 6K7, 6L7, 6K7, 6G5, 6K7, 6H6, 6K7, 6H6, 6J7, 6C5, 5Z4 - according to Rider's 8; Bass Amplifier with 6N7G, 2 x 6C5G, 6F6G, 2 x 6L6G and 83 (25 watts, driving the 18 inch speaker, schematic N-920) and a Treble Amplifier (schematic N-919) with 6F6G, 2 x 6L6G and 5Z3. See also the rare model 500-FR which has on top of that "Middle Register Amplifier" with the same tubes as the "treble amplifier".
See the other model pages under their model type name.
For an overview about the cabinets during the different seasons see this article.

The Capehart 400 series were introduced for season 1931/32 without suffix, followed by A 1932/33, B 1933/34 etc. through to season 1948-50. See here the "Common information for the Capehart model pages for the 1930s and 1940s".

External source of data Ernst Erb
Mentioned in The Incomparable Capehart
Literature/Schematics (1) Rider's Perpetual, Volume 8 = 1937 and before


All listed radios etc. from Capehart Corp.; Fort Wayne, IN - see also Farnsworth
Here you find 207 models, 140 with images and 71 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
