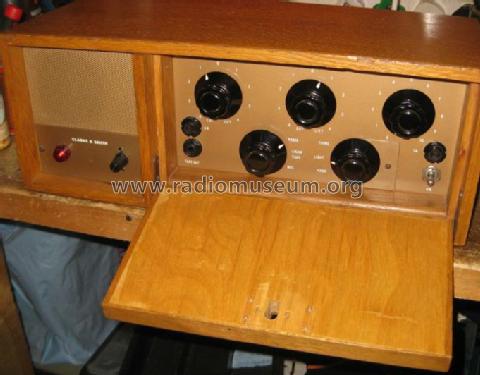

Schools Broadcast Receiver 747
Clarke & Smith MFG Co. Ltd.; Wallington, Surrey
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Clarke & Smith MFG Co. Ltd.; Wallington, Surrey
- Year
- 1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 350227
- Number of Transistors
- 10
- Main principle
- Superhet with RF-stage
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 50 Hz, 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Schools Broadcast Receiver 747 - Clarke & Smith MFG Co. Ltd.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
FM Only, school receiver.
Volume control by ten-position stepped attenuator, gram, and mic inputs can also be selected. Three-position switch selects BBC R2/ R3/R4.
Tuner with 3 presets a West German Gorler 312-0032 and IF panel 322-0015.
Fitted with a Fane monitor loudspeaker, the receiver is designed to be used in conjunction with an amplifier such as the C&S Model 88/20 Schools Receiver Amplifier.
- Author
- Model page created by Clive Forder. See "Data change" for further contributors.
