S9-II

S9-II; Condor Ing. Gallo; (ID = 310475) Car Radio

S9-II; Condor Ing. Gallo; (ID = 310476) Car Radio

S9-II; Condor Ing. Gallo; (ID = 310477) Car Radio
S9-II; Condor Ing. Gallo; (ID = 310472) Car Radio S9-II; Condor Ing. Gallo; (ID = 310473) Car Radio

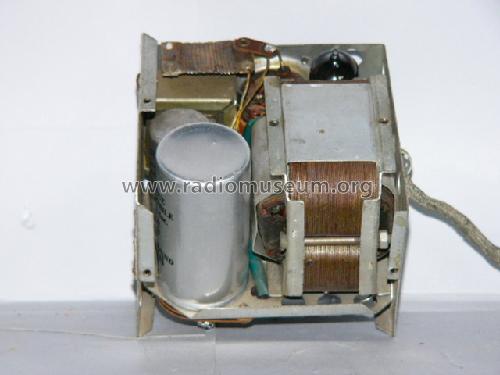

S9-II; Condor Ing. Gallo; (ID = 310474) Car Radio S9-II; Condor Ing. Gallo; (ID = 310478) Car Radio
Use red slider bar for more.
S9-II; Condor Ing. Gallo; (ID = 310472) Car Radio
Condor Ing. Gallo;: S9-II [Car Radio] ID = 310472 698x380
Select picture or schematic to display from thumbnails on the right and click for download.
For model S9-II, Condor (Ing. Gallo); Milano

Country:  Italy
Manufacturer / Brand:  Condor (Ing. Gallo); Milano
Year: 1955 ?? Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 6BA6 ECH81 EAF42 EABC80 ECC82 EL84
Main principle Superhet with RF-stage; ZF/IF 470 kHz
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12; 24 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: S9-II - Condor Ing. Gallo; Milano
Material Metal case
Dimensions (WHD) 170 x 64 x 215 mm / 6.7 x 2.5 x 8.5 inch
Notes Autoradio con sintonia a permeabilità variabile, gamme d'onda medie 520-1600 kHz e corte, ricerca automatica delle emittenti con variazione di sensibilità a scatti e dispositivo per il comando a distanza. Lo stadio finale e l'alimentatore sono in un contenitore a parte come l'alparlante.
Net weight (2.2 lb = 1 kg) 8.1 kg / 17 lb 13.5 oz (17.841 lb)
Price in first year of sale 94'000.00 ITL
Mentioned in Catalogo ANIE

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
