U584

U584; Stern & Stern (ID = 1036692) Radio U584; Stern & Stern (ID = 1036691) Radio
U584; Stern & Stern (ID = 1036693) Radio U584; Stern & Stern (ID = 1036694) Radio

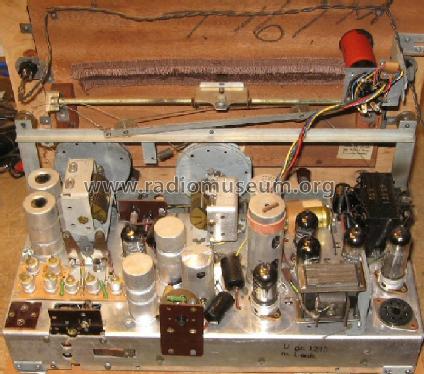

U584; Stern & Stern (ID = 1036957) Radio
Use red slider bar for more.
U584; Stern & Stern (ID = 1036692) Radio
Stern & Stern: U584 [Radio] ID = 1036692 843x930
Select picture or schematic to display from thumbnails on the right and click for download.
For model U584, Stern & Stern (Concerton / Conserton), S&S; Stockholm

Country:  Sweden
Manufacturer / Brand:  Stern & Stern (Concerton / Conserton), S&S; Stockholm
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: UCH42 UAF42 UAF42 UAF42 UM4 UL41 UL41 UY1N
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details Changer (Record changer)
Power type and voltage AC/DC-set / 120; 135; 160; 225 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 28 cm = 11 inch
Power out
from Radiomuseum.org Model: U584 - Stern & Stern Concerton /
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 860 x 710 x 400 mm / 33.9 x 28 x 15.7 inch
Notes Price without recordplayer/changer. Five SW-bands 15,4-185 m. Variable IF-bandwidth. Philips 2975 record changer. Price incl. record changer 1420 SEK.
Price in first year of sale 1'050.00 SEK
Source of data - - Manufacturers Literature

Model page created by Anders Söderström. See "Data change" for further contributors.



All listed radios etc. from Stern & Stern (Concerton / Conserton), S&S; Stockholm
Here you find 371 models, 180 with images and 57 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
