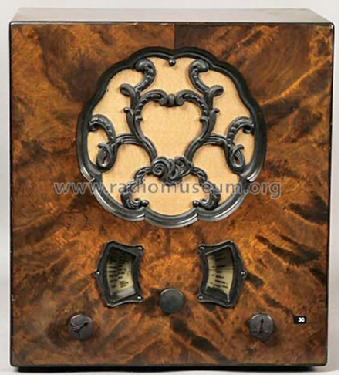

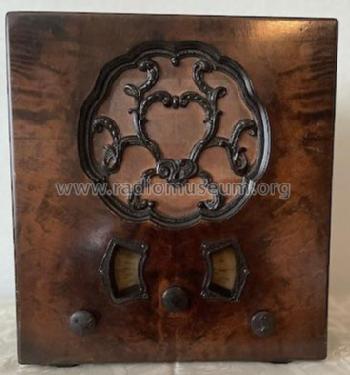

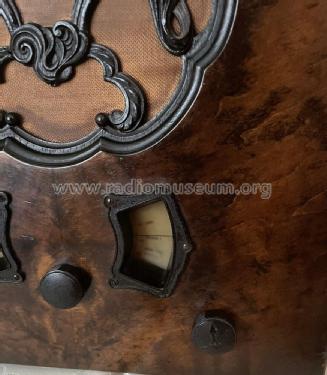

Concerton U63

Stern & Stern (Concerton / Conserton), S&S; Stockholm

Data
Forum
Pictures
Collections

  • Year
  • 1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 135022

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • AC/DC-set
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Concerton U63 - Stern & Stern Concerton /
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 336 x 373 x 221 mm / 13.2 x 14.7 x 8.7 inch
  • Notes

  • Wave bands:
    MW = 190 - 580 m
    LW = 670 - 1940 m

    Octode superhet with AGC and tone control. Cabinet in flamed birch.

    See also model V63 for the AC version.

  • Price in first year of sale
  • 315.00 SEK
  • Mentioned in
  • -- Original prospect or advert (ASEA Catalog, Aug. 1934)
