• Country
• Germany

• Manufacturer / Brand
• Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19670

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

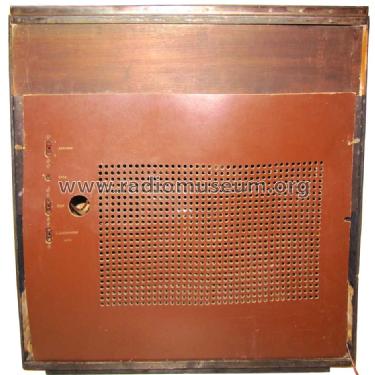

• Model: Imperial 659W-3D - Continental-Rundfunk GmbH

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 700 x 770 x 425 mm / 27.6 x 30.3 x 16.7 inch

• Notes
• Plattenwechsler anstatt -spieler zum Aufpreis von 80,- DM möglich.

• Net weight (2.2 lb = 1 kg)
• 32 kg / 70 lb 7.8 oz (70.485 lb)

• Price in first year of sale
• 619.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb
