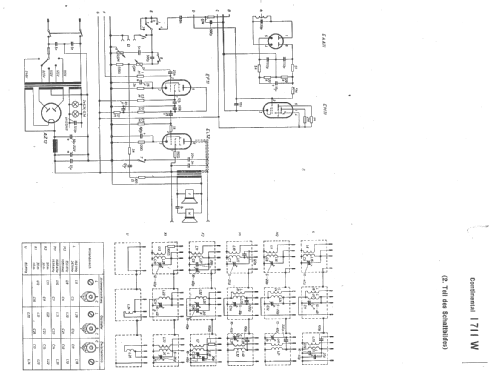

Imperial 711W; Continental-Rundfunk (ID = 12242) Radio

Imperial 711W; Continental-Rundfunk (ID = 44086) Radio

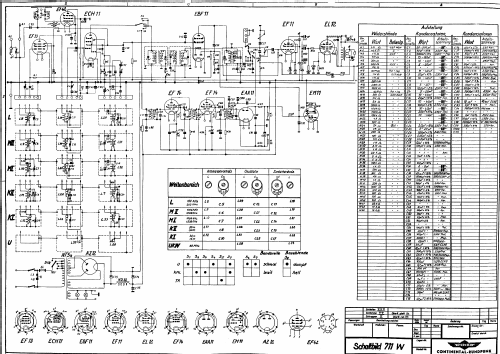

Imperial 711W; Continental-Rundfunk (ID = 221453) Radio
Imperial 711W; Continental-Rundfunk (ID = 122470) Radio Imperial 711W; Continental-Rundfunk (ID = 322394) Radio

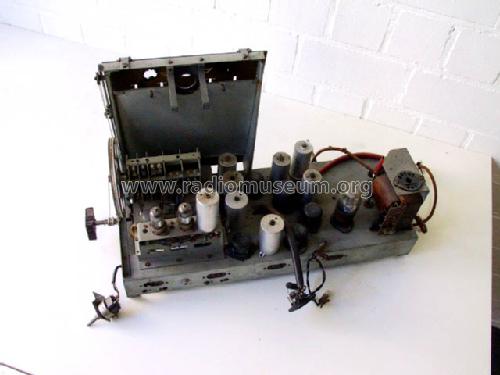

Imperial 711W; Continental-Rundfunk (ID = 93759) Radio Imperial 711W; Continental-Rundfunk (ID = 96940) Radio
Imperial 711W; Continental-Rundfunk (ID = 96941) Radio Imperial 711W; Continental-Rundfunk (ID = 96939) Radio
Imperial 711W; Continental-Rundfunk (ID = 97902) Radio Imperial 711W; Continental-Rundfunk (ID = 97903) Radio
Imperial 711W; Continental-Rundfunk (ID = 322395) Radio Imperial 711W; Continental-Rundfunk (ID = 322399) Radio
Use red slider bar for more.
Imperial 711W; Continental-Rundfunk (ID = 122470) Radio
Continental-Rundfunk: Imperial 711W [Radio] ID = 122470 400x253
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial 711W, Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz:
ebay: piaggiotreter

Country:  Germany
Manufacturer / Brand:  Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
Year: 1950–1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: EF42 EF13 ECH11 EBF11 EM11 EF14 EF14 EAA11 EF11 EL12 AZ12
Main principle Superhet with RF-stage; ZF/IF 472 kHz
Tuned circuits 9 AM circuit(s)     9 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Imperial 711W - Continental-Rundfunk GmbH
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 620 x 380 x 320 mm / 24.4 x 15 x 12.6 inch
Notes Wellenbereiche: LW, 2× MW, 2× KW, UKW; Mittelwellen- und KW-Spreizung, Bandbreitenregelung; UKW-Bereich 85 - 105 MHz, UKW-Röhrensatz gegen Mehrpreis (35,60 DM).
Net weight (2.2 lb = 1 kg) 19.5 kg / 42 lb 15.2 oz (42.952 lb)
Price in first year of sale 585.00 DM
External source of data Erb
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 2, Ernst Erb
