Imperial Suleika 906 PE Rex A
Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
- Country
- Germany
- Manufacturer / Brand
- Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 20681

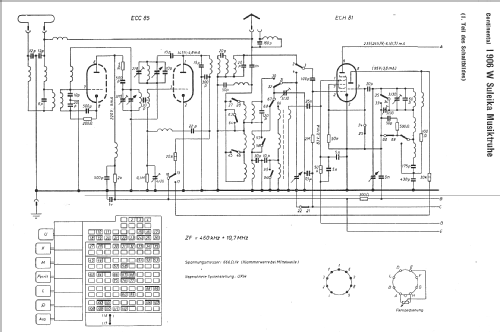

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer); Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Imperial Suleika 906 [PE Rex A] - Continental-Rundfunk GmbH
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1020 x 840 x 420 mm / 40.2 x 33.1 x 16.5 inch
- Notes
- Phono-Chassis = Perpetuum-Ebner Rex A.
- Net weight (2.2 lb = 1 kg)
- 47 kg / 103 lb 8.4 oz (103.524 lb)
- Price in first year of sale
- 848.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 2, Ernst Erb
