316-1

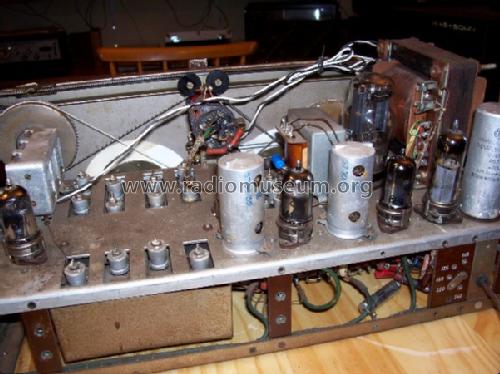

316-1; Czeija, Nissl & Co., (ID = 376996) Radio 316-1; Czeija, Nissl & Co., (ID = 376997) Radio
316-1; Czeija, Nissl & Co., (ID = 376998) Radio 316-1; Czeija, Nissl & Co., (ID = 376999) Radio
316-1; Czeija, Nissl & Co., (ID = 377000) Radio
Use red slider bar for more.
316-1; Czeija, Nissl & Co., (ID = 376996) Radio
Czeija, Nissl & Co.,: 316-1 [Radio] ID = 376996 601x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model 316-1, Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien

Country:  Austria
Manufacturer / Brand:  Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
alternative name

Hekaphon
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH42 EAF42 EAF42 EAF42 EM34 EL41 AZ1
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110 - 240 Volt
Loudspeaker 2 Loudspeakers / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: 316-1 - Czeija, Nissl & Co., Standard,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 545 x 390 x 245 mm / 21.5 x 15.4 x 9.6 inch
Notes LS permanetdynamisch, Kurzwelle einmal durchgehend, sämtliche Bänder von 16 - 50 meter auch einzeln schaltbar. Gerät dürfte wahrscheinlich nicht in Vollserie gegangen sein.
Source of data - - Data from my own collection

Model page created by Anton Sarne. See "Data change" for further contributors.
