Faun 40

Faun 40 ; Czeija, Nissl & Co., (ID = 840054) Radio Faun 40 ; Czeija, Nissl & Co., (ID = 840057) Radio

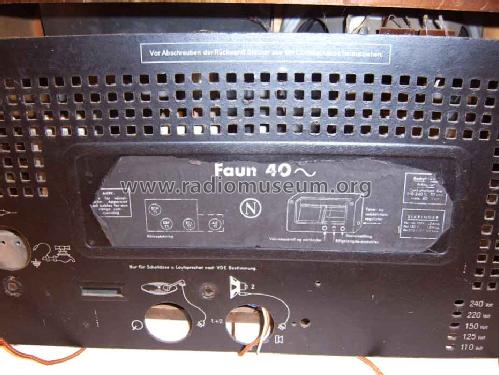

Faun 40 ; Czeija, Nissl & Co., (ID = 840059) Radio
Use red slider bar for more.

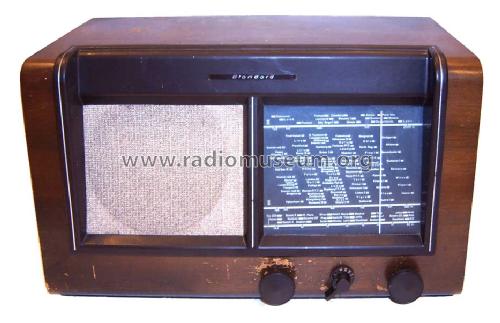

Faun 40 ; Czeija, Nissl & Co., (ID = 840054) Radio
Czeija, Nissl & Co.,: Faun 40 [Radio] ID = 840054 933x604
Select picture or schematic to display from thumbnails on the right and click for download.
For model Faun 40, Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien:
Bild von Rolf Rudi.

Country:  Austria
Manufacturer / Brand:  Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
alternative name

Hekaphon
Year: 1939 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Faun 40 - Czeija, Nissl & Co., Standard,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 310 x 240 mm / 20.5 x 12.2 x 9.4 inch

Model page created by Rolf Rudi. See "Data change" for further contributors.



All listed radios etc. from Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
Here you find 120 models, 66 with images and 34 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Czeija, Nissl & Co.,: Faun 40
Threads: 1 | Posts: 6
Hits: 1983     Replies: 5
Faun 40 (Standard)
Rolf Rudi
26.Sep.10
  1

I am trying to find more information on this radio from about 1940.

Manufacturer is "Standard".

Tubes: ECH11-EBF11-ECL11-AZ11

The one I've got is not working and it would be of great help to have a drawing.

I can not find this radio by searching in Radiomuseum.

Can anybody help?

Ernst Erb
26.Sep.10
  2

Dear Rolf
We can only help if you create the model first if it is not there. All what you see is the work of members - and it would be good that members do continue - otherweise we would not have the content you see.

Just click the link "Create new Model" on the search page and you have the on line form for that.
Good luck.

By the way: Has this model no name? Well, we will see after your upload.


Andreas Hamel
28.Sep.10
  3

Dear Rolf

I´ve a FAUN 64 and I also dont't know who is the mnufacturer. But I found a model in the RMorg what is very similar to my FAUN 64 - its a TEFAG 150W I. It's the same chassis and the same case and I think it's also the same circuit diagram. I think you can search in RMorg for an TEFAG with the same appearance to your FAUN.

good luck

A. Hamel

Rolf Rudi
28.Sep.10
  4



Thank you for valuable information, Andreas.

I think you are right. From behind the Faun and the Tefag looks simular with the same tubes and arrangement. The front is different, but I think the circuit diagram is the same and can be used for the Faun. The Faun has a burnt mainstransformer. I suppose it is hard to find a original replasement.

Best regards to you Andreas

From Rolf

Wolfgang Bauer
29.Sep.10
  5


The company Czeija & Nissel, Tefag, and Lorenz Berlin used the same chassis.

The name "Standard" used Czeija & Nissel for their equipment.

The Faun 40 has the same chassis as the above mentioned devices.

Mr Rolf Rudi, please enter your pictures to model Faun 40.

Regards WB.

Rolf Rudi
29.Sep.10
  6

I will. But I have to use the weekend to find out how to reduse the size of the files.

Regards

Rolf


Czeija, Nissl & Co.,: Faun 40
End of forum contributions about this model
