Hekaphon-Super 46W (V-41405)

Hekaphon-Super 46W ; Czeija, Nissl & Co., (ID = 1779240) Radio

Hekaphon-Super 46W ; Czeija, Nissl & Co., (ID = 1779243) Radio
Hekaphon-Super 46W ; Czeija, Nissl & Co., (ID = 305384) Radio Hekaphon-Super 46W ; Czeija, Nissl & Co., (ID = 305387) Radio
Hekaphon-Super 46W ; Czeija, Nissl & Co., (ID = 305388) Radio Hekaphon-Super 46W ; Czeija, Nissl & Co., (ID = 305385) Radio

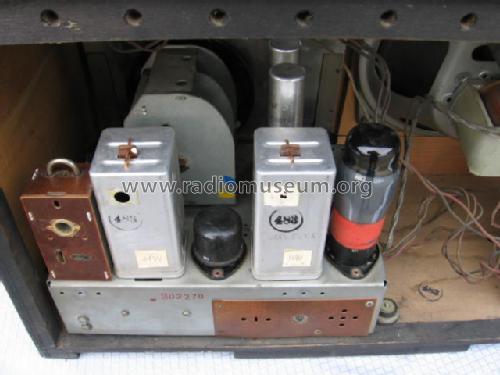

Hekaphon-Super 46W ; Czeija, Nissl & Co., (ID = 305386) Radio Hekaphon-Super 46W ; Czeija, Nissl & Co., (ID = 305389) Radio
Use red slider bar for more.
Hekaphon-Super 46W ; Czeija, Nissl & Co., (ID = 305384) Radio
Czeija, Nissl & Co.,: Hekaphon-Super 46W [Radio] ID = 305384 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hekaphon-Super 46W (V-41405), Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien:
Hekaphon Super 46W

Country:  Austria
Manufacturer / Brand:  Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
alternative name

Hekaphon
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Hekaphon-Super 46W - Czeija, Nissl & Co., Standard,
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Von Lorenz für Vereinigte Telefon- & Telegrafen-Werke AG (VTT),gebaut.
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
Here you find 120 models, 66 with images and 34 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
