Octavio Super 313/1

Octavio Super 313/1; Czeija, Nissl & Co., (ID = 7984) Radio

Octavio Super 313/1; Czeija, Nissl & Co., (ID = 134439) Radio

Octavio Super 313/1; Czeija, Nissl & Co., (ID = 2013494) Radio

Octavio Super 313/1; Czeija, Nissl & Co., (ID = 2013495) Radio

Octavio Super 313/1; Czeija, Nissl & Co., (ID = 2013496) Radio

Octavio Super 313/1; Czeija, Nissl & Co., (ID = 2013497) Radio

Octavio Super 313/1; Czeija, Nissl & Co., (ID = 2013498) Radio
Octavio Super 313/1; Czeija, Nissl & Co., (ID = 1654056) Radio Octavio Super 313/1; Czeija, Nissl & Co., (ID = 63932) Radio

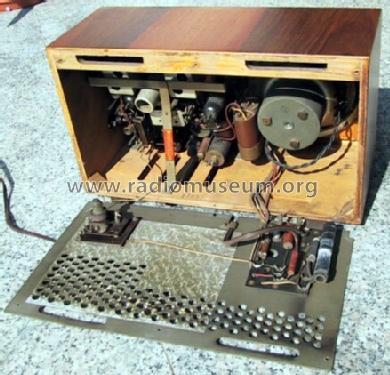

Octavio Super 313/1; Czeija, Nissl & Co., (ID = 63934) Radio Octavio Super 313/1; Czeija, Nissl & Co., (ID = 63933) Radio
Octavio Super 313/1; Czeija, Nissl & Co., (ID = 328688) Radio Octavio Super 313/1; Czeija, Nissl & Co., (ID = 328690) Radio
Octavio Super 313/1; Czeija, Nissl & Co., (ID = 328691) Radio Octavio Super 313/1; Czeija, Nissl & Co., (ID = 328692) Radio
Octavio Super 313/1; Czeija, Nissl & Co., (ID = 386865) Radio Octavio Super 313/1; Czeija, Nissl & Co., (ID = 386867) Radio
Use red slider bar for more.
Octavio Super 313/1; Czeija, Nissl & Co., (ID = 1654056) Radio
Czeija, Nissl & Co.,: Octavio Super 313/1 [Radio] ID = 1654056 933x584
Select picture or schematic to display from thumbnails on the right and click for download.
For model Octavio Super 313/1, Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien

Country:  Austria
Manufacturer / Brand:  Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
alternative name

Hekaphon
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH42 UAF42 UBC41 UL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif. NTC-Resistor
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Octavio Super 313/1 - Czeija, Nissl & Co., Standard,
Material Wooden case
Shape Tablemodel, low profile (big size).
Price in first year of sale 930.00 ATS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch


All listed radios etc. from Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
Here you find 120 models, 66 with images and 34 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
