5024-41

5024-41; Damaiter marca / (ID = 1183446) Television 5024-41; Damaiter marca / (ID = 1183447) Television
5024-41; Damaiter marca / (ID = 1183448) Television 5024-41; Damaiter marca / (ID = 1183450) Television

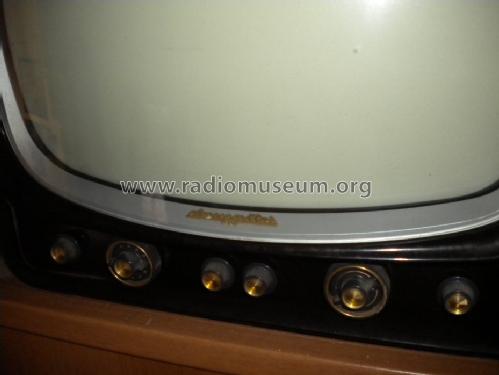

5024-41; Damaiter marca / (ID = 1183451) Television
Use red slider bar for more.
5024-41; Damaiter marca / (ID = 1183446) Television
Damaiter marca /: 5024-41 [Television] ID = 1183446 930x914
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5024-41, Damaiter (marca / brand); ved. le note / see text

Country:  Italy
Manufacturer / Brand:  Damaiter (marca / brand); ved. le note / see text
Year: 1960 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: 9TP4 9TP4 9TP4 6P4 6TD34 15F80 6P4 6TD34 17F6 PCL82 PL36 17R7 1R6 19R3 19R3 AW43-80
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 125; 140; 160; 220; 240; 260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: 5024-41 - Damaiter marca / brand; ved.
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 420 x 420 x 420 mm / 16.5 x 16.5 x 16.5 inch
Notes Tubo catodico da 17". Tubi serie Magnadyne.
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Source of data - - Data from my own collection

Model page created by Stefano Cerchi. See "Data change" for further contributors.



All listed radios etc. from Damaiter (marca / brand); ved. le note / see text
Here you find 26 models, 19 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
