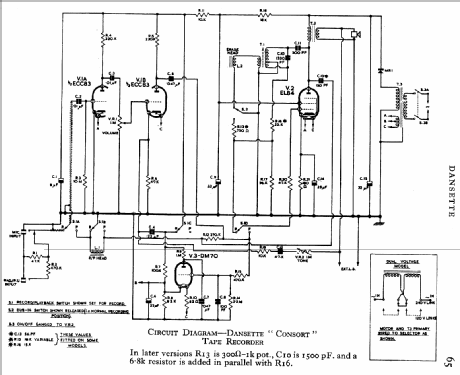

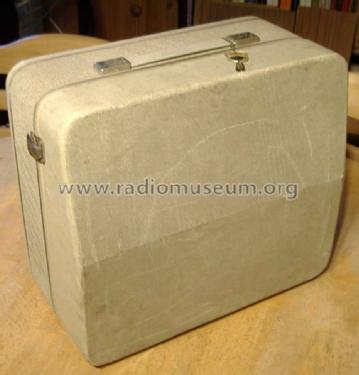

Dansette Products: Consort [R-Player] ID = 1399104 933x738
Select picture or schematic to display from thumbnails on the right and click for download.
For model Consort, Dansette Products Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Dansette Products Ltd.; London
Year: 1963 Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: ECC83 EL84 DM70
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Consort - Dansette Products Ltd.; London
Shape Tablemodel, with any shape - general.
Notes

Open reel tape recorder, single speed.

During record the EL84 (playback Audio output) is used as Erase Head driver/Oscillator and recording bias. C10 and T1 set the Erase/Bias ultrasonic frequency.

A Metal rectifier provides HT.

The DM70 is recording level.

The "Dub" switch disconnects the erase head.

Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Dansette Products Ltd.; London
Here you find 65 models, 58 with images and 49 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
