• Year
  • 1957
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 146600
    • alternative name: Decca Gramophone || Decca Radio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 100-125; 200-250 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 8 W (unknown quality)
  • from Radiomuseum.org

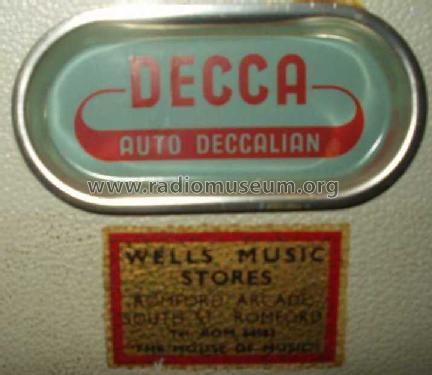

  • Model: Deccalian 88 - Decca Brand, Samuel Barnett &
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

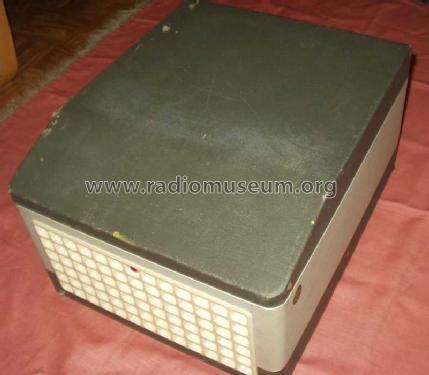

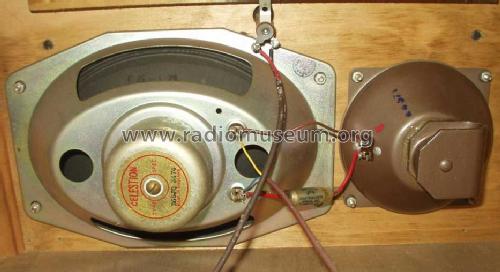

  • Portable record player with optional legs. Garrard or Collaro auto-changer. Speaker 8x5 inch plus 4inch HF unit.
  • Price in first year of sale
  • 29.00 GBP
  • Source of data
  • -- Schematic
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Literature/Schematics (1)
  • ERT Service Chart 1143.
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
