Portrola

Portrola ; Decca, London (ID = 548660) Radio

Portrola ; Decca, London (ID = 1049463) Radio

Portrola ; Decca, London (ID = 1049464) Radio

Portrola ; Decca, London (ID = 1049465) Radio

Portrola ; Decca, London (ID = 1049466) Radio
Portrola ; Decca, London (ID = 1950631) Radio Portrola ; Decca, London (ID = 1064922) Radio
Portrola ; Decca, London (ID = 1950632) Radio
Use red slider bar for more.
Portrola ; Decca, London (ID = 1950631) Radio
Decca, London: Portrola [Radio] ID = 1950631 800x591
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portrola, Decca, London:

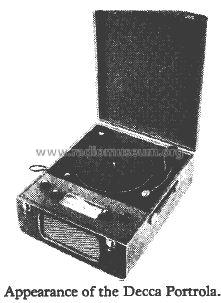

A 1952 Decca Portrola portable radiogram, Ebay UK item 182010294117 seller tacitus321

Country:  Great Britain (UK)
Manufacturer / Brand:  Decca, London
alternative name

Decca Gramophone || Decca Radio
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EBF80 6SL7GT 6V6GT EZ41
Main principle Superheterodyne (common); ZF/IF 380 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Portrola - Decca, London
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Notes Portable radiogram with 3 speed player. Early models fitted with B.S.R. GU4A motor. Later models fitted with Garrard "T" motor. Two Decca plug-in pick-ups. Type C for standard 78, & type D for 33.5 / 45 rpm.
Price in first year of sale 27.00 GBP
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1134)

Model page created by Keith Staines. See "Data change" for further contributors.
