- Country
- Great Britain (UK)
- Manufacturer / Brand
- Decca (Brand), Samuel (Barnett) & Sons, Ltd. & Decca Record Co., Ltd.; London
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 145253
-
- alternative name: Decca Gramophone || Decca Radio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 100-125 / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

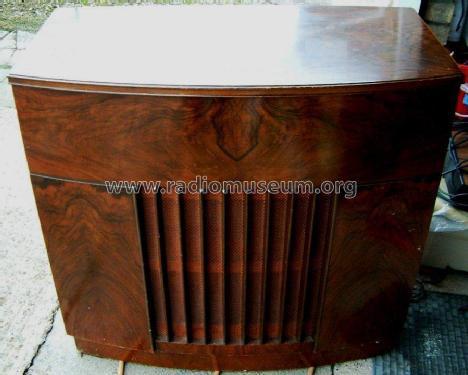

- Model: RG103 - Decca Brand, Samuel Barnett &
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 34.5 x 33 x 18 inch / 876 x 838 x 457 mm
- Notes
- Radiogram fitted with Garrard RC80 3 speed record changer. Electrostatic tweeters fitted.
- Price in first year of sale
- 112.00 GBP
- Source of data
- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Literature/Schematics (1)
- ERT 1071.
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
