482

482; Deso, Dewald & Sohn, (ID = 2516601) Radio
482; Deso, Dewald & Sohn, (ID = 640821) Radio 482; Deso, Dewald & Sohn, (ID = 640822) Radio
482; Deso, Dewald & Sohn, (ID = 640823) Radio 482; Deso, Dewald & Sohn, (ID = 640824) Radio
Use red slider bar for more.
482; Deso, Dewald & Sohn, (ID = 640821) Radio
Deso, Dewald & Sohn,: 482 [Radio] ID = 640821 639x394
Select picture or schematic to display from thumbnails on the right and click for download.
For model 482, Deso, Dewald & Sohn, Dewald AG; Zürich

Country:  Switzerland
Manufacturer / Brand:  Deso, Dewald & Sohn, Dewald AG; Zürich
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details

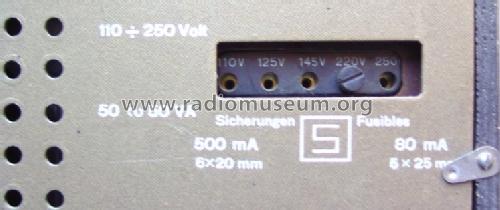

Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: 482 - Deso, Dewald & Sohn, Dewald AG
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 425 x 255 x 210 mm / 16.7 x 10 x 8.3 inch

Model page created by Ottmar Lauth. See "Data change" for further contributors.
