• Country
• Germany

• Manufacturer / Brand
• DeTeWe

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1481

• • alternative name: Deutsche Telephonwerke GmbH; || Deutsche Tel-w. & und Kabelind. || DTW

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ACH1 AF3 ABC1 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

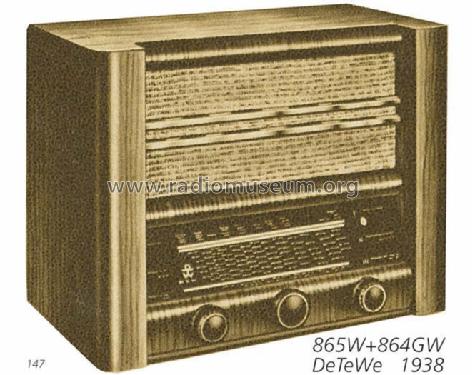

• Model: 865W - DeTeWe

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 405 x 280 mm / 19.7 x 15.9 x 11 inch

• Notes
• variable Bandbreite; =Nora W68.

• Net weight (2.2 lb = 1 kg)
• 14.5 kg / 31 lb 15 oz (31.938 lb)

• Price in first year of sale
• 230.00 RM

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Funkgeschichte der GFGF (8754)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 116 models, 94 with images and 57 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
