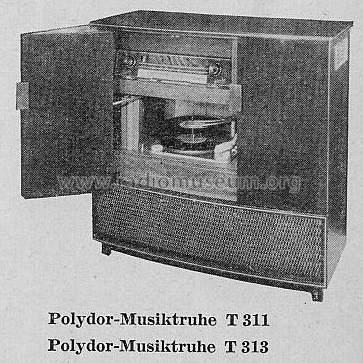

Polydor-Musikvitrine T311

Deutsche Grammophon-AG; Berlin

  • Year
  • 1955/1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 22573
    • Brand: Polydor

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220; 240 Volt
  • Loudspeaker
  • 5 Loudspeakers
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Polydor-Musikvitrine T311 - Deutsche Grammophon-AG; Berlin
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 910 x 890 x 410 mm / 35.8 x 35 x 16.1 inch
  • Notes
  • Rundfunk-Chassis = Siemens G51DG;
    Phono-Chassis = W3350.
  • Net weight (2.2 lb = 1 kg)
  • 47 kg / 103 lb 8.4 oz (103.524 lb)
  • Price in first year of sale
  • 795.00 DM
  • External source of data
  • Erb
