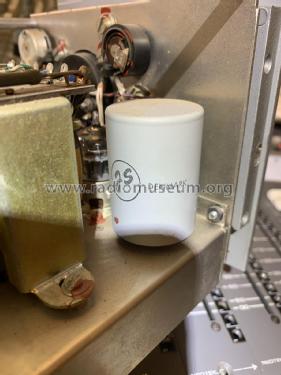

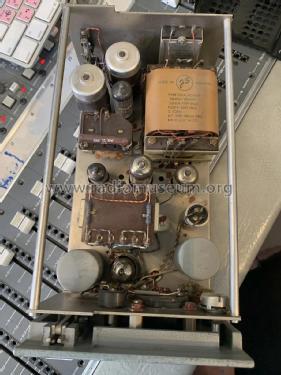

Limiting amplifier 91N02

Limiting amplifier 91N02; Disa Elektronik A/S; (ID = 2009226) Ampl/Mixer
Use red slider bar for more.
Limiting amplifier 91N02; Disa Elektronik A/S; (ID = 2009226) Ampl/Mixer
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Denmark
Manufacturer / Brand:  Disa Elektronik A/S; Copenhagen
Year: 1960 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 4: 6386 ECC83 E80CC EAA91 0A2
Main principle Audio-Amplification; 3 AF stage(s)
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out 0.5 W (undistorted)
from Radiomuseum.org Model: Limiting amplifier 91N02 - Disa Elektronik A/S;
Material Metal case
Shape Rack
Dimensions (WHD) 140 x 134 x 270 mm / 5.5 x 5.3 x 10.6 inch
Notes

Limiting amplifier for broadcast consoles. Standard DIN broadcast cassette, size 3.

Literature/Schematics (1) - - Manufacturers Literature (schematic)

Model page created by Matti Adolfsen. See "Data change" for further contributors.
