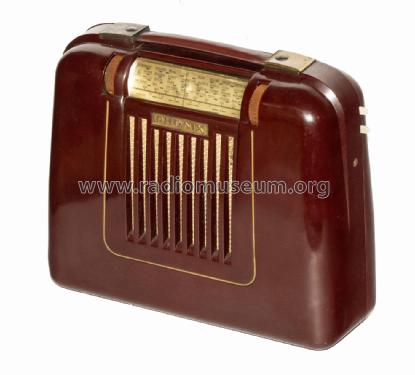

Phönix 55GWB
Dreipunkt-Gerätebau, Willy Hütter, Nürnberg
- Country
- Germany
- Manufacturer / Brand
- Dreipunkt-Gerätebau, Willy Hütter, Nürnberg
- Year
- 1953 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 363837
-
- alternative name: Radio-Hütter
- Brand: Hütter, W. (Radio-Versand)
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- E150C65
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Line / Batteries (any type) / AC-DC: 110; 125; 220 V / 7,5 & 75 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Phönix 55GWB - Dreipunkt-Gerätebau, Willy
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 240 x 110 mm / 11.8 x 9.4 x 4.3 inch
- Notes
-
Netzspannung und die Betriebsart Gleich- oder Wechselstrom ist auf der Rückseite des Chassis einzustellen.
Die TeKaDe Empfänger GWB167 bzw. GWB167k verwenden ein identisch ausgeführtes Gehäuse.
- Net weight (2.2 lb = 1 kg)
- 2.850 kg / 6 lb 4.4 oz (6.278 lb)
- Author
- Model page created by Ingo Moll. See "Data change" for further contributors.
