- Country
- Germany
- Manufacturer / Brand
- Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
- Year
- 1958 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 108976

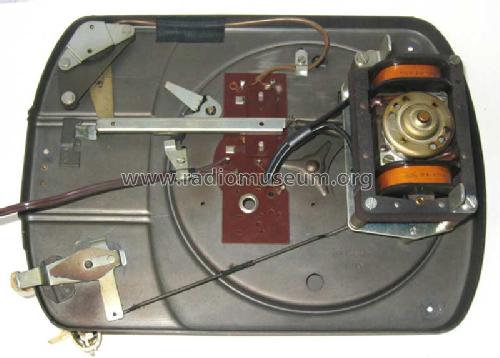

Detailansicht des Antriebs
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-125, 220-240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: 295T1 - Dual, Gebr. Steidinger; St.
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 285 x 130 x 210 mm / 11.2 x 5.1 x 8.3 inch
- Notes
-
Dual 295 T1
Plattenspieler besonders kleiner Bauart. 4-tourig - 16, 33, 45 und 78 UpM. Tonabnehmer umschaltbar, für alle Normal- und Mikrorillenschallplatten bis 30 cm Ø. Plattenteller Ø 17cm, Mono-Kristallsystem Dual_CDS_2B Auflagekraft 90mN. Kein Netzspannungswähler, Netzspannung am Motor umlötbar.
Vergleiche auch Dual_295 mit 3-stufigem Netzspannungswähler
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
