HS130 Ch= Dual 1224 + TV377 v2 mit IC-Verstärker

HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 417047) R-Player

HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 2021619) R-Player

HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 2021620) R-Player

HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 2021621) R-Player

HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 2021622) R-Player
HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 2056794) R-Player HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 2056790) R-Player
HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 2056791) R-Player HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 2056792) R-Player
HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 2056793) R-Player HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 2056795) R-Player
HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 417048) R-Player HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 417049) R-Player
HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 1076534) R-Player HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 1108427) R-Player
Use red slider bar for more.
HS130 Ch= Dual 1224 + TV377 v2; Dual, Gebr. (ID = 2056794) R-Player

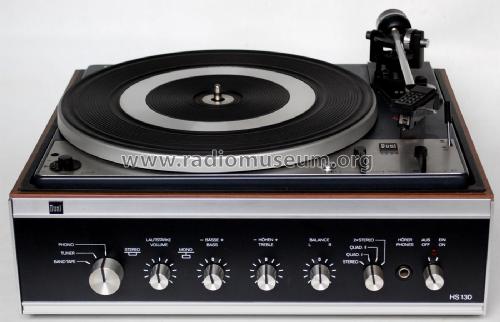

Dual, Gebr.: HS130 Ch= Dual 1224 + TV377 v2 [R-Player] ID = 2056794 1400x861
Select picture or schematic to display from thumbnails on the right and click for download.
For model HS130 Ch= Dual 1224 + TV377 v2 mit IC-Verstärker, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1976–1979 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) TBA810 TBA810
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: HS130 Ch= Dual 1224 + TV377 v2 [mit IC-Verstärker] - Dual, Gebr. Steidinger; St.
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 357 x 180 x 325 mm / 14.1 x 7.1 x 12.8 inch
Notes

Phono-Chassis = Dual 1224 mit Keramiksystem CDS650;
Stereo-NF-Verstärker TV377 Ausgabe 2 mit zwei Endstufen je 6 W;
Zwei Lautsprecherboxen (300×195×105 mm, 1,8 kg) im Lieferumfang.
Vier Lautsprecher-Anschlüsse, DIN-Buchsen für Band/Tape und Tuner.

Gehäuse in Nussbaum natur, in Schleiflack weiss siehe Type HS130W. Abmessungen inkl. Abdeckhaube H14.

Alternativbestückungen: 2x TBA641B12 oder 2x TCA150C.

Siehe auch HS130 mit Transistorverstärker.

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) Handbuch VDRG 1976/1977

Model page created by Geert Schulte. See "Data change" for further contributors.
