• Year
  • 1970–1975
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 108700

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 110-130; 150; 220-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 6 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

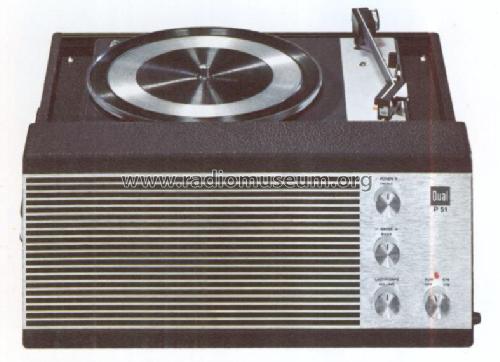

  • Model: P51 Ch= 420, TV71A - Dual, Gebr. Steidinger; St.
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 373 x 160 x 350 mm / 14.7 x 6.3 x 13.8 inch
  • Notes
  • Phono-Chassis = 420 mit Stereo-Keramiksystem CDS 650. mit Nadel DN 6;
    Verstärker-Chassis = TV71A.

  • Net weight (2.2 lb = 1 kg)
  • 7.2 kg / 15 lb 13.7 oz (15.859 lb)
  • Price in first year of sale
  • 274.00 DM
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Dual, Service-Unterlagen)
  • Author
  • Model page created by Wolfgang Winkler. See "Data change" for further contributors.
