Mikado

Mikado ; Ducal Radio; (ID = 1529285) Radio Mikado ; Ducal Radio; (ID = 1529287) Radio
Mikado ; Ducal Radio; (ID = 1529288) Radio Mikado ; Ducal Radio; (ID = 1529289) Radio
Mikado ; Ducal Radio; (ID = 1529290) Radio Mikado ; Ducal Radio; (ID = 1529291) Radio
Mikado ; Ducal Radio; (ID = 1529292) Radio
Use red slider bar for more.
Mikado ; Ducal Radio; (ID = 1529285) Radio

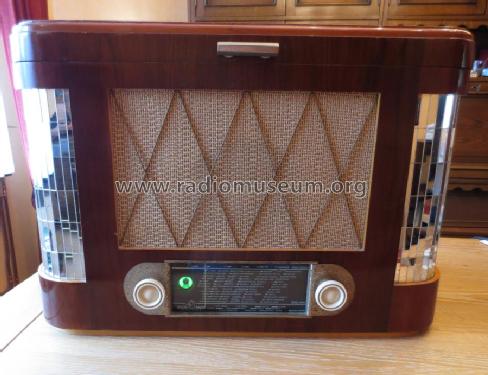

Ducal Radio;: Mikado [Radio] ID = 1529285 900x691
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mikado, Ducal Radio; Luxembourg

Country:  Luxembourg
Manufacturer / Brand:  Ducal Radio; Luxembourg
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ1 EM4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Mikado - Ducal Radio; Luxembourg
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 680 x 480 x 375 mm / 26.8 x 18.9 x 14.8 inch
Notes

Garrard record changer.

Price in first year of sale 9'750.00 LUF
Mentioned in -- Original prospect or advert (Tageblatt, 25/11/1950)
Literature/Schematics (1) Luxemburger Wort, 22/11/1950

Model page created by Raoul Tholl. See "Data change" for further contributors.
