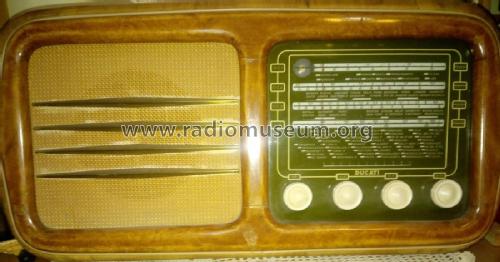

Ducati, SSR Società: RR4260 [Radio] ID = 2224153 1400x736
Select picture or schematic to display from thumbnails on the right and click for download.
For model RR4260, Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna:
Radio a valvole modello Ducati RR4260

Country:  Italy
Manufacturer / Brand:  Ducati, SSR (Società Scientifica Radio Brevetti Ducati); Bologna
Year: 1949 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7GT 6SK7GT 6SQ7GT 6V6GT 6E5GT 6X5GT
Main principle Superheterodyne (common); ZF/IF 462 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: RR4260 - Ducati, SSR Società
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Gamme d'onda: Onde Medie + 3 gamme di Onde Corte.
Wave bands: BC + 3 x SW. Meter.
Controllo di tono. Ingresso per giradischi.

Source of data Riparazioni - Scuola Radio Elettra
Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 59-60)
Literature/Schematics (1) Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 35)
