AB 58

AB 58; Dux Radio AB; (ID = 1412981) Radio AB 58; Dux Radio AB; (ID = 1412982) Radio
AB 58; Dux Radio AB; (ID = 1412984) Radio AB 58; Dux Radio AB; (ID = 1412985) Radio
AB 58; Dux Radio AB; (ID = 1412986) Radio
Use red slider bar for more.

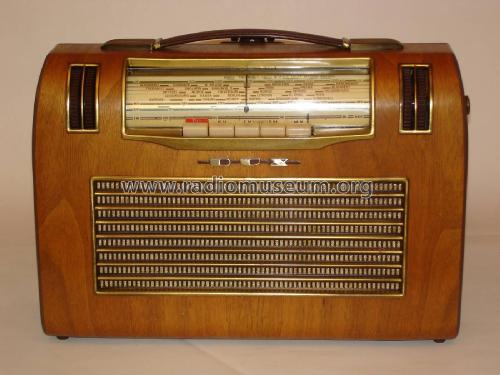

AB 58; Dux Radio AB; (ID = 1412981) Radio
Dux Radio AB;: AB 58 [Radio] ID = 1412981 550x395
Select picture or schematic to display from thumbnails on the right and click for download.
For model AB 58, Dux Radio AB; Stockholm:
Ebay-Verk.: goka08, ArtNr.: 170992131078

Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 125; 145; 220 / 3 x 1,5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: AB 58 - Dux Radio AB; Stockholm
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 340 x 250 x 120 mm / 13.4 x 9.8 x 4.7 inch
Notes

Getrennte Abstimmung für AM / FM, Klangregelung; Einbau-Netzteil.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Collectors' prices

Model page created by Günther Stabe. See "Data change" for further contributors.
