V125

V125; Dux Radio AB; (ID = 2395385) Radio V125; Dux Radio AB; (ID = 2395386) Radio
V125; Dux Radio AB; (ID = 2395387) Radio V125; Dux Radio AB; (ID = 2395388) Radio
V125; Dux Radio AB; (ID = 2395389) Radio V125; Dux Radio AB; (ID = 2395390) Radio
Use red slider bar for more.

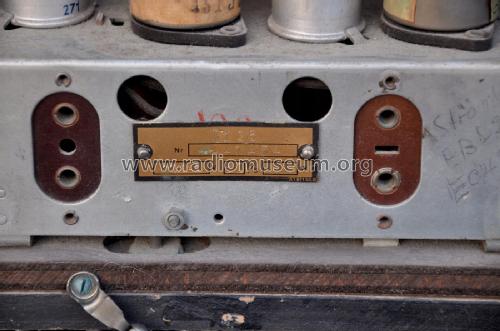

V125; Dux Radio AB; (ID = 2395385) Radio
Dux Radio AB;: V125 [Radio] ID = 2395385 1400x929
Select picture or schematic to display from thumbnails on the right and click for download.
For model V125, Dux Radio AB; Stockholm:
Image taken from polish online auction portal .allegro.pl. Auction number: 7967137604

Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH21 ECH21 EBL21 AZ1 EM4
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: V125 - Dux Radio AB; Stockholm
Material Wooden case
Shape Tablemodel, low profile (big size).
Collectors' prices

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.



All listed radios etc. from Dux Radio AB; Stockholm
Here you find 166 models, 148 with images and 76 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
