V343

V343; Dux Radio AB; (ID = 2023495) Radio
V343; Dux Radio AB; (ID = 2023068) Radio V343; Dux Radio AB; (ID = 2023504) Radio
V343; Dux Radio AB; (ID = 2023499) Radio V343; Dux Radio AB; (ID = 2023506) Radio

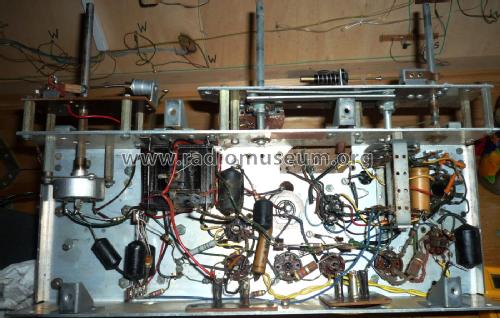

V343; Dux Radio AB; (ID = 2023512) Radio
Use red slider bar for more.
V343; Dux Radio AB; (ID = 2023068) Radio
Dux Radio AB;: V343 [Radio] ID = 2023068 1400x894
Select picture or schematic to display from thumbnails on the right and click for download.
For model V343, Dux Radio AB; Stockholm

Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EF41 EL41 EM34 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz; 2 AF stage(s); none
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 135; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: V343 - Dux Radio AB; Stockholm
Material Wooden case
Shape Tablemodel, slant panel.
Dimensions (WHD) 400 x 275 x 210 mm / 15.7 x 10.8 x 8.3 inch
Notes

Am Chassis hinten unten:
TA - Buchse mit Mittelstift, Bu für 2. Lautsprecher.

Model page created by Dietmar Rentsch. See "Data change" for further contributors.
