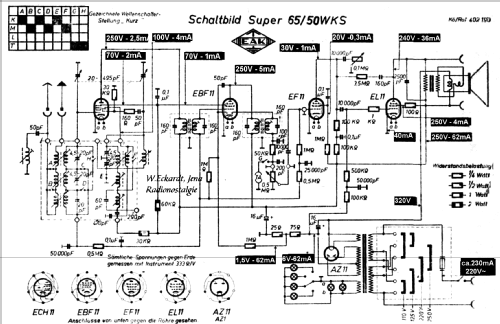

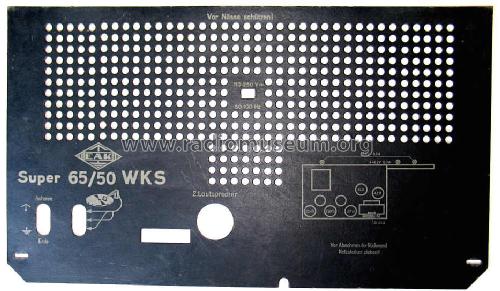

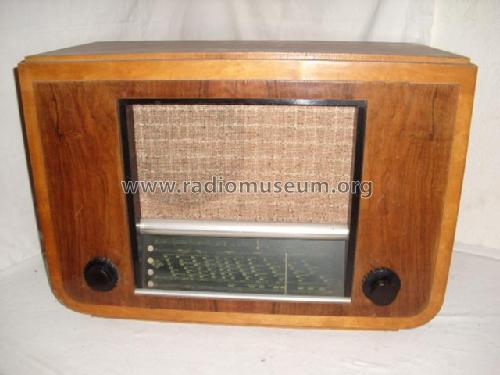

Select picture or schematic to display from thumbnails on the right and click for download.
For model 65/50WKS, EAK, Elektro-Apparatefabrik Köppelsdorf, ex AEG (Sonneberg)

Country:  Germany
Manufacturer / Brand:  EAK, Elektro-Apparatefabrik Köppelsdorf, ex AEG (Sonneberg)
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EF11 EL11 AZ11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 65/50WKS - EAK, Elektro-Apparatefabrik
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Kurzwellenlupe
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Hermann Rottmann und Fred P. Langheinrich hatten mir dieses Gerät erstmals bekannt gemacht. Sie verfügen jedoch nicht über Schaltungen darüber oder weitere Informationen, sondern haben mir bei der Recherche geholfen. Danke.
