• Country
• Germany

• Manufacturer / Brand
• EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 295445

• • alternative name: AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
  • Brand: AT Apparatewerk Treptow

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH11 UBF11 UCL11 UM11

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

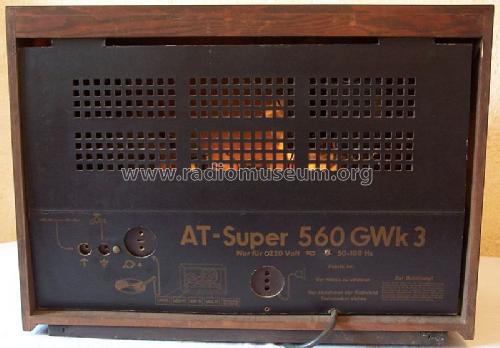

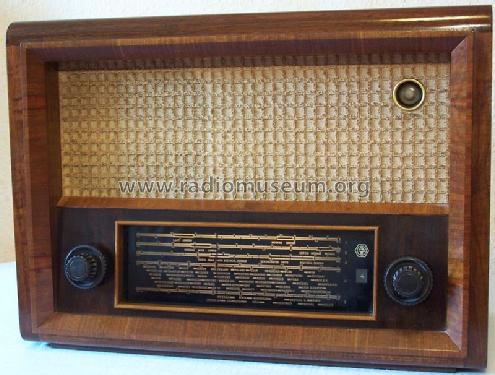

• Model: AT-Super 560GWk3 [Magisches Auge oben rechts] - EAW, Elektro-Apparate-Werke,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 530 x 390 x 300 mm / 20.9 x 15.4 x 11.8 inch

• Notes

• Gehäusevariante mit Magischem Auge oben rechts und Skala in Holzrahmen gefasst.

  Siehe hier Version mit Magischem Auge unten Mitte über Skala mit Metallrahmen.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
