HF12A

HF12A; EICO Electronic (ID = 509405) Ampl/Mixer HF12A; EICO Electronic (ID = 509406) Ampl/Mixer
HF12A; EICO Electronic (ID = 509407) Ampl/Mixer HF12A; EICO Electronic (ID = 509408) Ampl/Mixer
HF12A; EICO Electronic (ID = 509409) Ampl/Mixer
Use red slider bar for more.

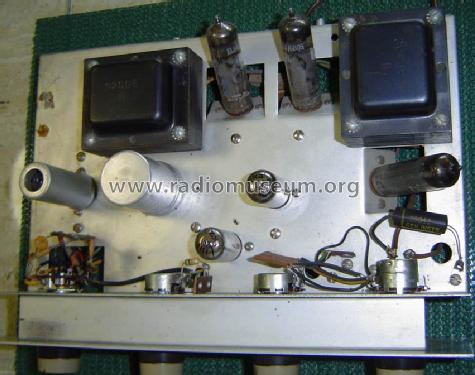

HF12A; EICO Electronic (ID = 509405) Ampl/Mixer
EICO Electronic: HF12A [Ampl/Mixer] ID = 509405 848x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model HF12A, EICO (Electronic Instrument Co.Inc.) Brooklyn:
aus ebay, Verkäufer watchcollector1945

Country:  United States of America (USA)
Manufacturer / Brand:  EICO (Electronic Instrument Co.Inc.) Brooklyn
Year: 1956 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 6: ECC83 ECC83 ECC83 EL84 EL84 EZ81
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 18 W (unknown quality)
from Radiomuseum.org Model: HF12A - EICO Electronic Instrument Co.
Material Metal case
Shape Book-shelf unit.
Notes Integrated Amp, mono.
Source of data -- Collector info (Sammler)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
