For model HF81, EICO (Electronic Instrument Co.Inc.) Brooklyn:
Sams photofact.

Country:  United States of America (USA)
Manufacturer / Brand:  EICO (Electronic Instrument Co.Inc.) Brooklyn
Year: 1959 ? Category: Audio Amplifier or -mixer
Valves / Tubes 12: ECC83 ECC83 ECC83 ECC83 ECC82 ECC82 EL84 EL84 EL84 EL84 EZ81 EZ81
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 28 W (unknown quality)
from Radiomuseum.org Model: HF81 - EICO Electronic Instrument Co.
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 380 x 250 x 120 mm / 15 x 9.8 x 4.7 inch
Notes AC operated stereo amplifier. Integrated dual amplifier. 14 watts RMS per channel, 28W total. Williamson design

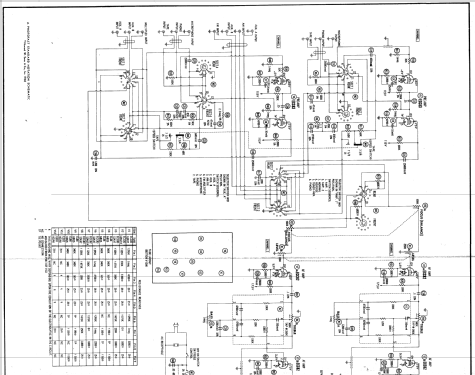

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 481 folder 5 date 4-60)

Model page created by Peter Hoddow. See "Data change" for further contributors.
