Orion W

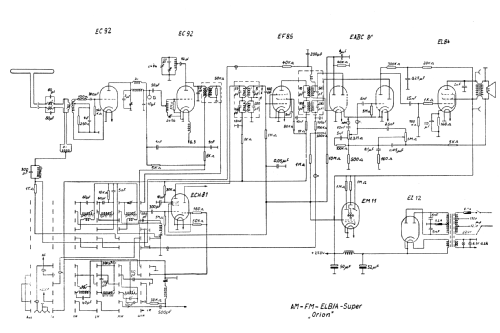

Orion W; Elbia GmbH; (ID = 100269) Radio

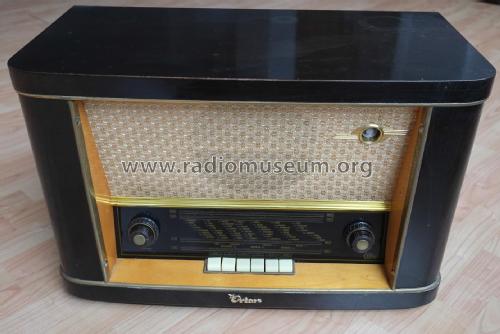

Orion W; Elbia GmbH; (ID = 212453) Radio Orion W; Elbia GmbH; (ID = 2157775) Radio
Orion W; Elbia GmbH; (ID = 2157776) Radio Orion W; Elbia GmbH; (ID = 2157777) Radio
Use red slider bar for more.
Orion W; Elbia GmbH; (ID = 212453) Radio
Elbia GmbH;: Orion W [Radio] ID = 212453 528x425
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orion W, Elbia GmbH; Schönebeck/Elbe (Ostd.):

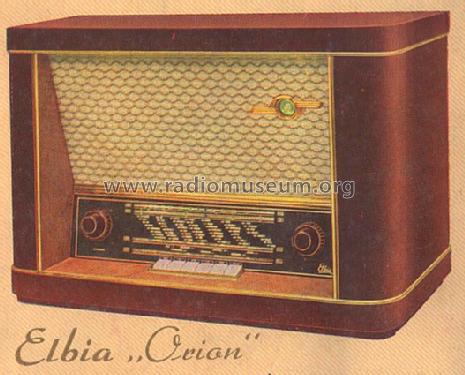

Originalprospekt

Country:  Germany
Manufacturer / Brand:  Elbia GmbH; Schönebeck/Elbe (Ostd.)
alternative name

Calbe
Brand
VEB Elbia; Schönebeck
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EC92 EC92 ECH81 EF85 EM11 EABC80 EL84 EZ12
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Orion W - Elbia GmbH; Schönebeck/Elbe
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 390 x 300 mm / 24 x 15.4 x 11.8 inch
Notes Drucktasten, optische Bereichsanzeige, Schwungradantrieb
Net weight (2.2 lb = 1 kg) 16.7 kg / 36 lb 12.5 oz (36.784 lb)
Price in first year of sale 487.00 DM
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 (B.1)

Model page created by Bernd Pötzsch. See "Data change" for further contributors.
