Nisava RR TV884-C10

Nisava RR TV884-C10; Elektronska (ID = 1421844) Television
Use red slider bar for more.
Nisava RR TV884-C10; Elektronska (ID = 1421844) Television
Elektronska: Nisava RR TV884-C10 [Television] ID = 1421844 841x1200
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nisava RR TV884-C10, Elektronska Industrija (Ei); Niš:

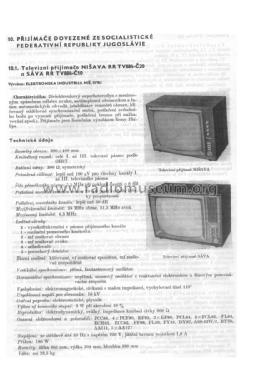

Aus dem Buch vom SNTL- Verlag Prag, Ausgabe 1970: Zahracní rozhlasové a televizní prijímace

Country:  Yugoslavia
Manufacturer / Brand:  Elektronska Industrija (Ei); Niš
Brand

Ei
Year: 1969 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: PCC88 PCF80 PCF80 PCF80 PCF80 EF85 EF80 EF80 EF80 PCL84 PCL82 PCL82 PL84 ECH83 ECC82 PF86 PL36 PY81 DY87 A59-12W/2
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Nisava RR TV884-C10 - Elektronska Industrija Ei; Niš
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 665 x 504 x 330 mm / 26.2 x 19.8 x 13 inch
Notes

VHF Band I und III, 2- Norm Gerät OIRT und CCIR für die Tschechoslowakei.

Net weight (2.2 lb = 1 kg) 28.5 kg / 62 lb 12.4 oz (62.775 lb)

Model page created by Wolfgang Lill. See "Data change" for further contributors.



All listed radios etc. from Elektronska Industrija (Ei); Niš
Here you find 103 models, 95 with images and 51 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
