Akkord - Акорд 102

Akkord - Акорд 102; Resprom; Veliko (ID = 1360472) Radio

Akkord - Акорд 102; Resprom; Veliko (ID = 1360473) Radio
Akkord - Акорд 102; Resprom; Veliko (ID = 1327112) Radio Akkord - Акорд 102; Resprom; Veliko (ID = 1327113) Radio
Akkord - Акорд 102; Resprom; Veliko (ID = 1327114) Radio Akkord - Акорд 102; Resprom; Veliko (ID = 1327115) Radio
Akkord - Акорд 102; Resprom; Veliko (ID = 1327116) Radio Akkord - Акорд 102; Resprom; Veliko (ID = 1669507) Radio
Akkord - Акорд 102; Resprom; Veliko (ID = 1791998) Radio Akkord - Акорд 102; Resprom; Veliko (ID = 1792006) Radio
Akkord - Акорд 102; Resprom; Veliko (ID = 1792007) Radio Akkord - Акорд 102; Resprom; Veliko (ID = 1792008) Radio
Use red slider bar for more.
Akkord - Акорд 102; Resprom; Veliko (ID = 1327112) Radio
Resprom; Veliko: Akkord - Акорд 102 [Radio] ID = 1327112 933x676
Select picture or schematic to display from thumbnails on the right and click for download.
For model Akkord - Акорд 102, Resprom; Veliko Tarnovo:
Picture from Valeri (restorer)

Country:  Bulgaria
Manufacturer / Brand:  Resprom; Veliko Tarnovo
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.

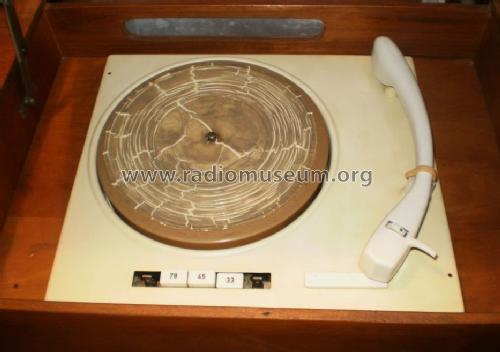

Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out 2.5 W (undistorted)
from Radiomuseum.org Model: Akkord - Акорд 102 - Resprom; Veliko Tarnovo
Material Wooden case

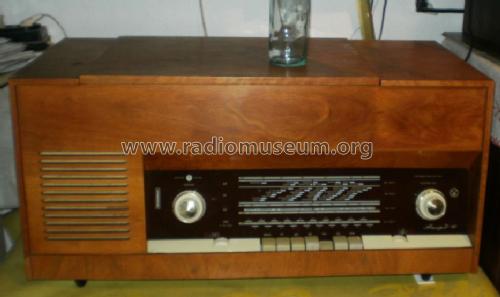

Shape Tablemodel with Push Buttons.
Notes

Wave Bands:
MW: 520-1600 kHz
LW: 145-350 kHz
SW: 5,8-18 MHz
FM: 64-73 MHz

Mentioned in book "Bulgarian Radio Receivers"

Model page created by Simeon Nikolov. See "Data change" for further contributors.
